SHORT COURSE

Hyper 8SC-e

DOWNLOAD

Hyper 8SC-e Instruction Manual.pdf Hyper 8SC-e Exploded View and Parts List.pdf

The electric version of the 1/8 short course race truck, Hyper 8SC-e, includes high performance features such as Hobby Wing 2350KV brushless motor and electronic speed control, all controlled by Hobao 2.4GHz 3-channel digital radio system.

< FEATURES >

	Hobby Wing Brushless Motor High torque 2350KV motor is standard on the truck, combined with 13T pinion and 40T spur gear for maximum efficiency.

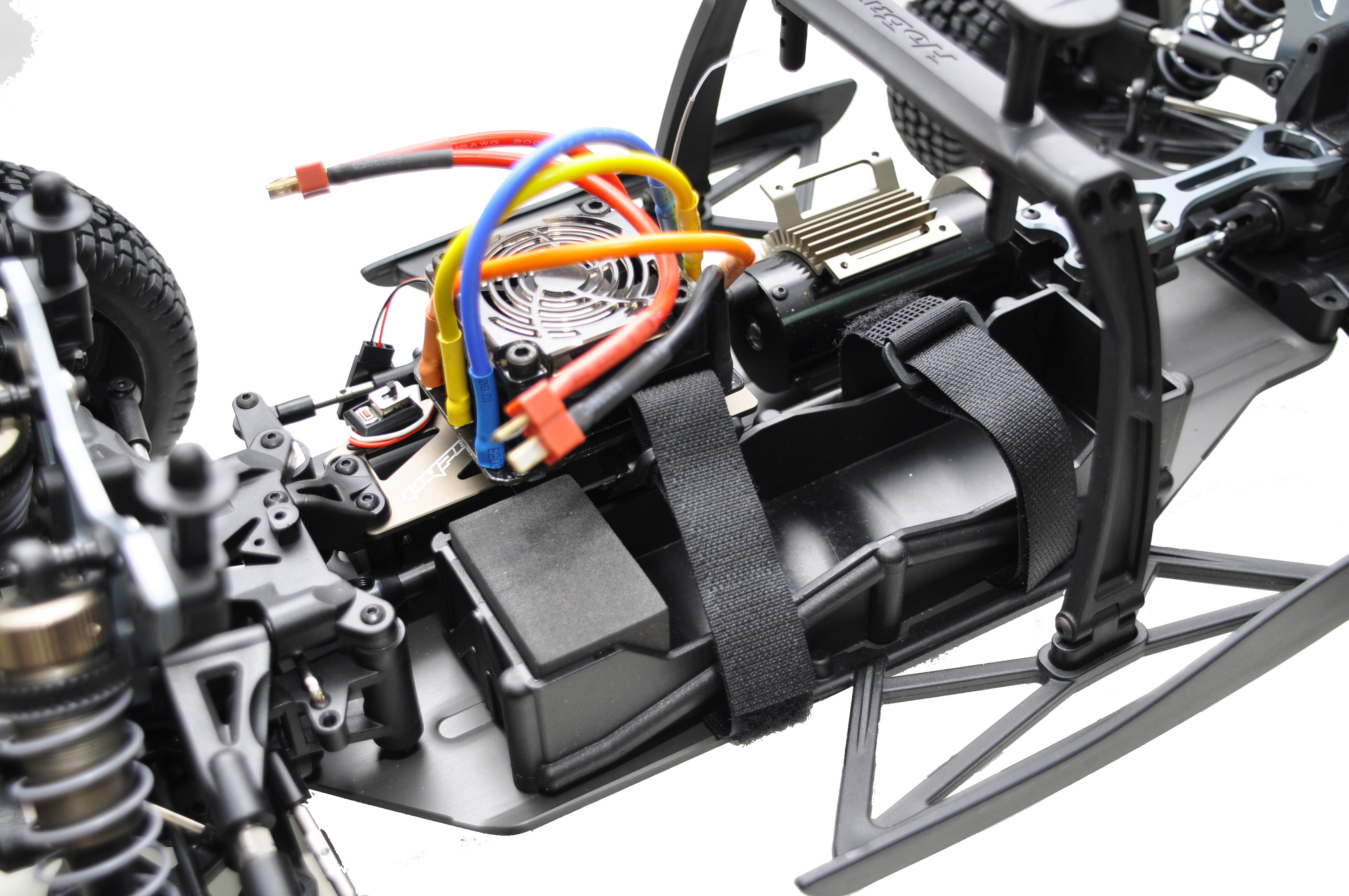

	Hobby Wing Brushless ESC High output 80A electronic speed control to provide the instantaneous power you need at your finger tip!

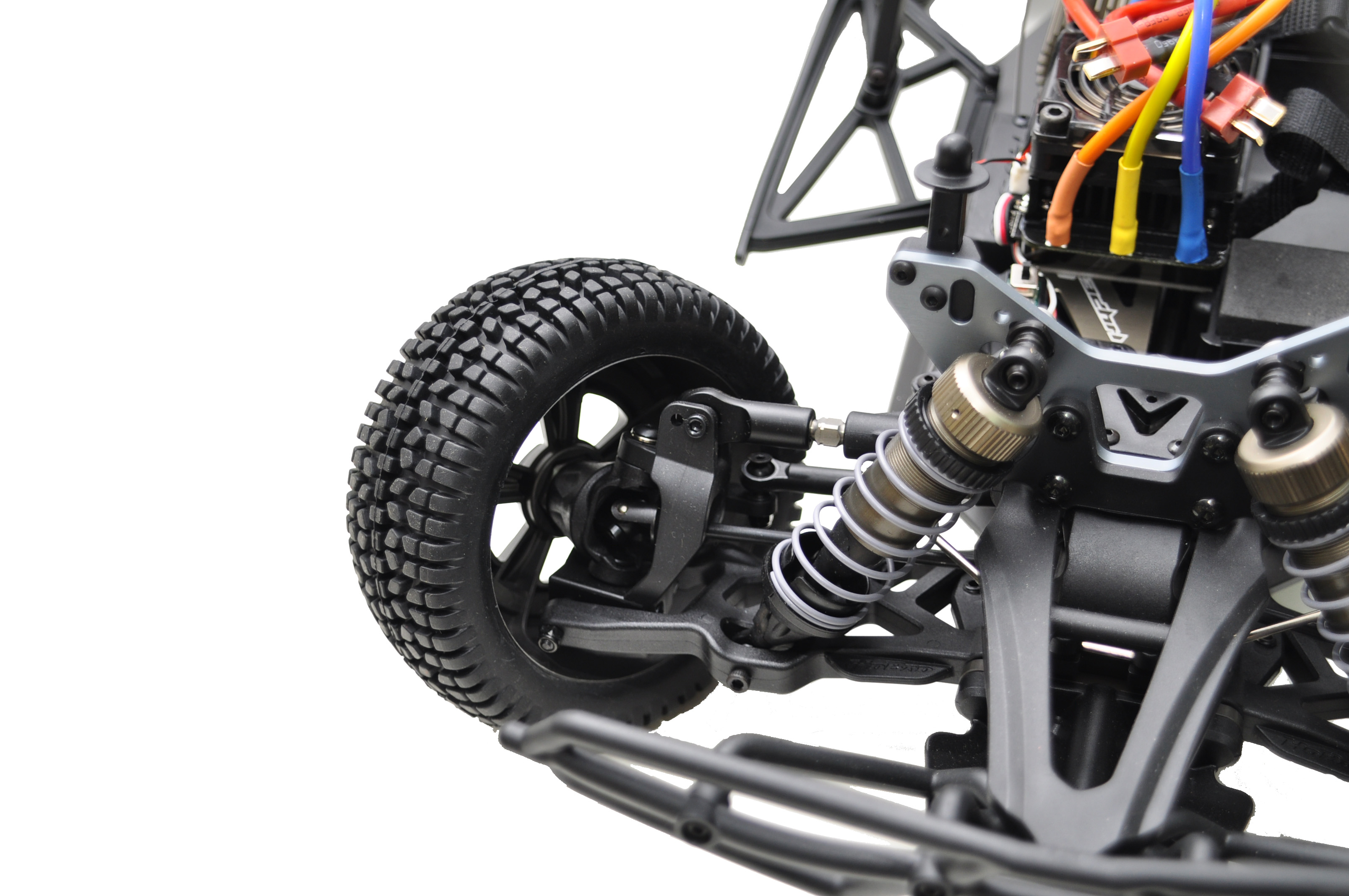

	Big Bore Shocks Four big bore shocks for long lasting endurance race without any fadings.
	High Torque Steering Servo Hobao's high torque servo give you a strong, precise steering and control of this big truck.
	Short Course Wheels and Tires Big authentic wheels and tires provide great look and performance like real short course trucks.

< EQUIPMENT NEEDED >

4S 14.8V or 3S 11.1V LiPo battery packs

Batteries for radio system

< SPECIFICATION >


LENGTH	635MM
WIDTH	307MM
HEIGHT	205MM
WHEELBASE	370MM~375MM
WEIGHT	4,800G

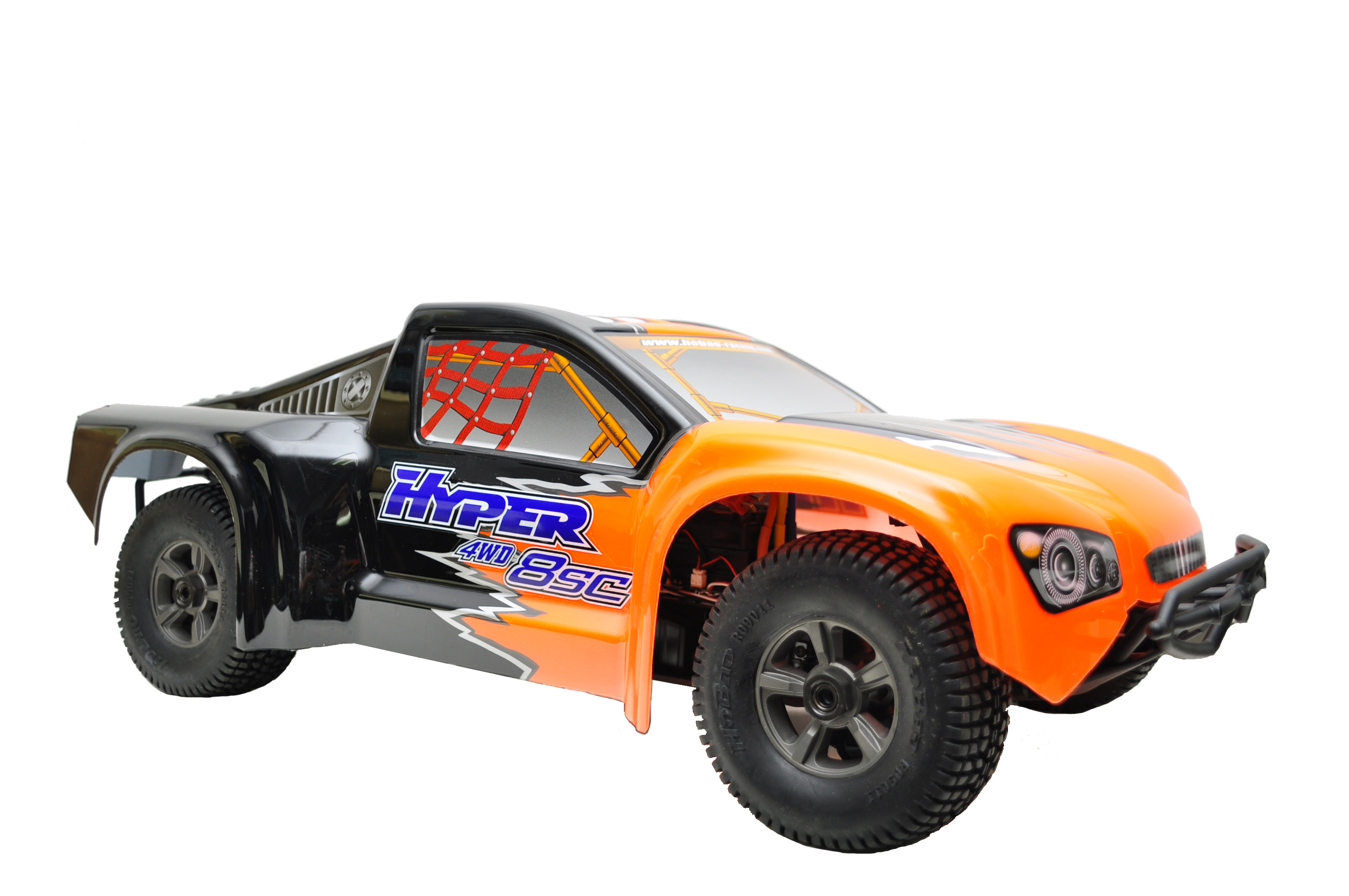

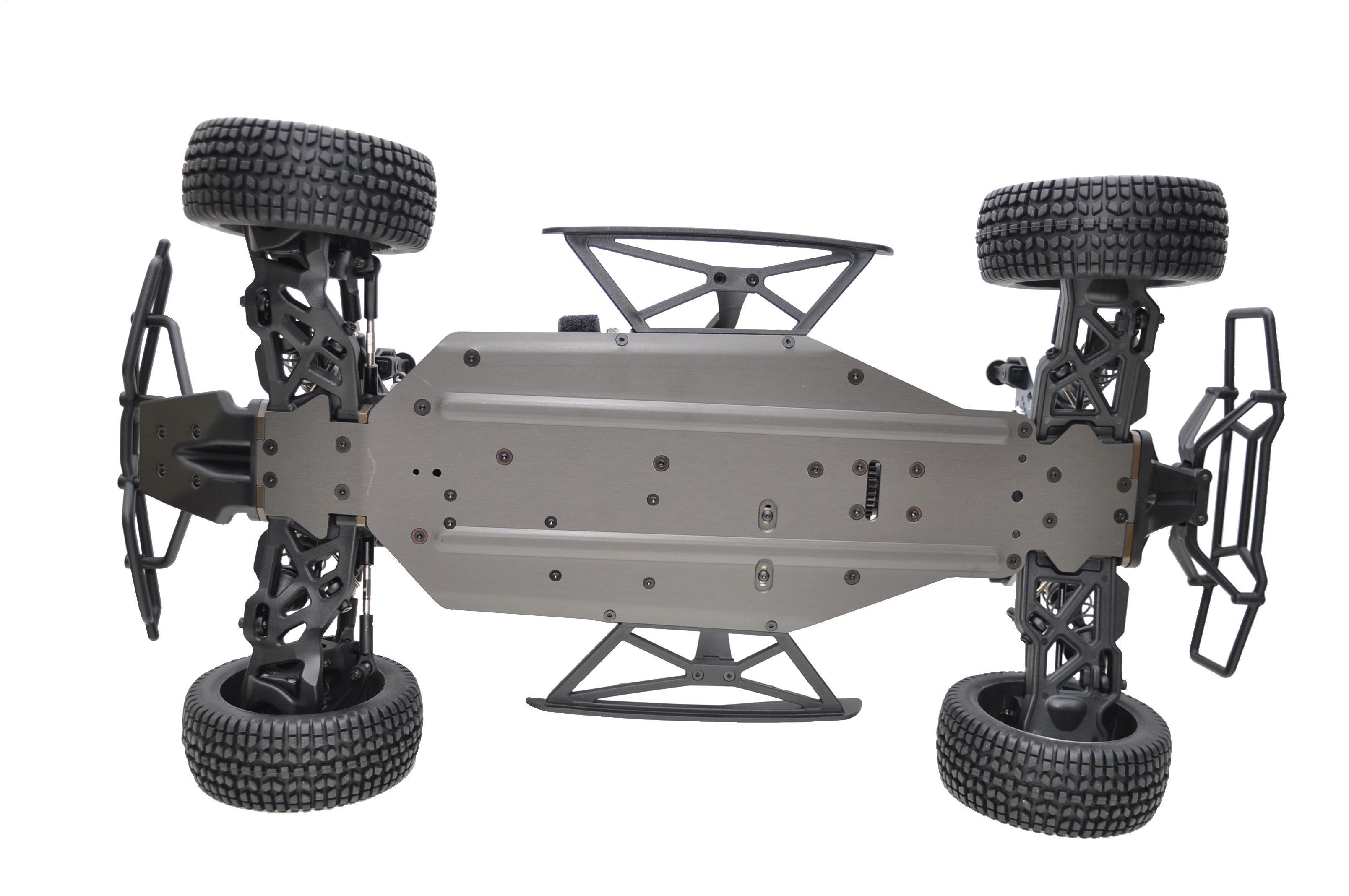

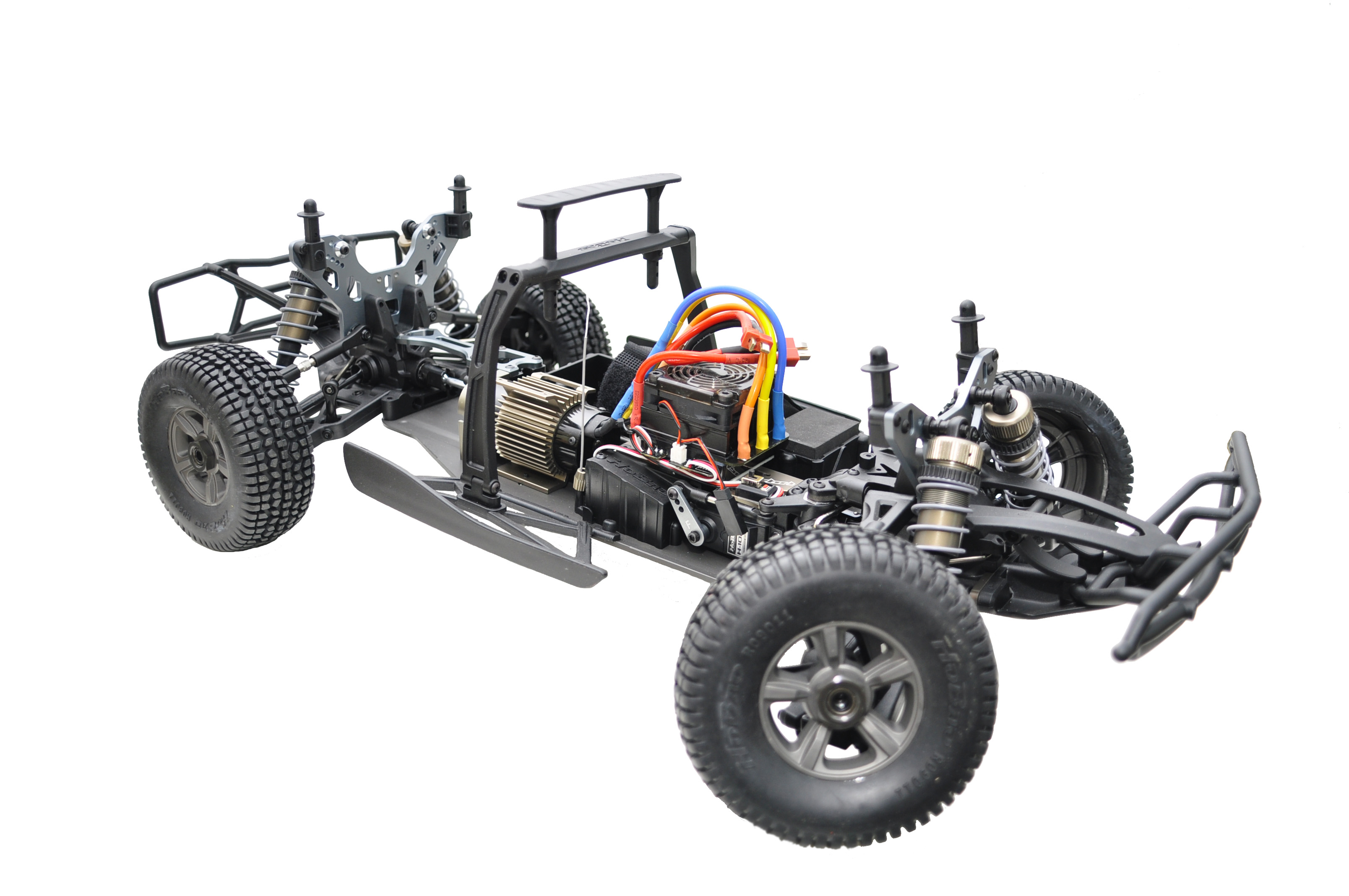

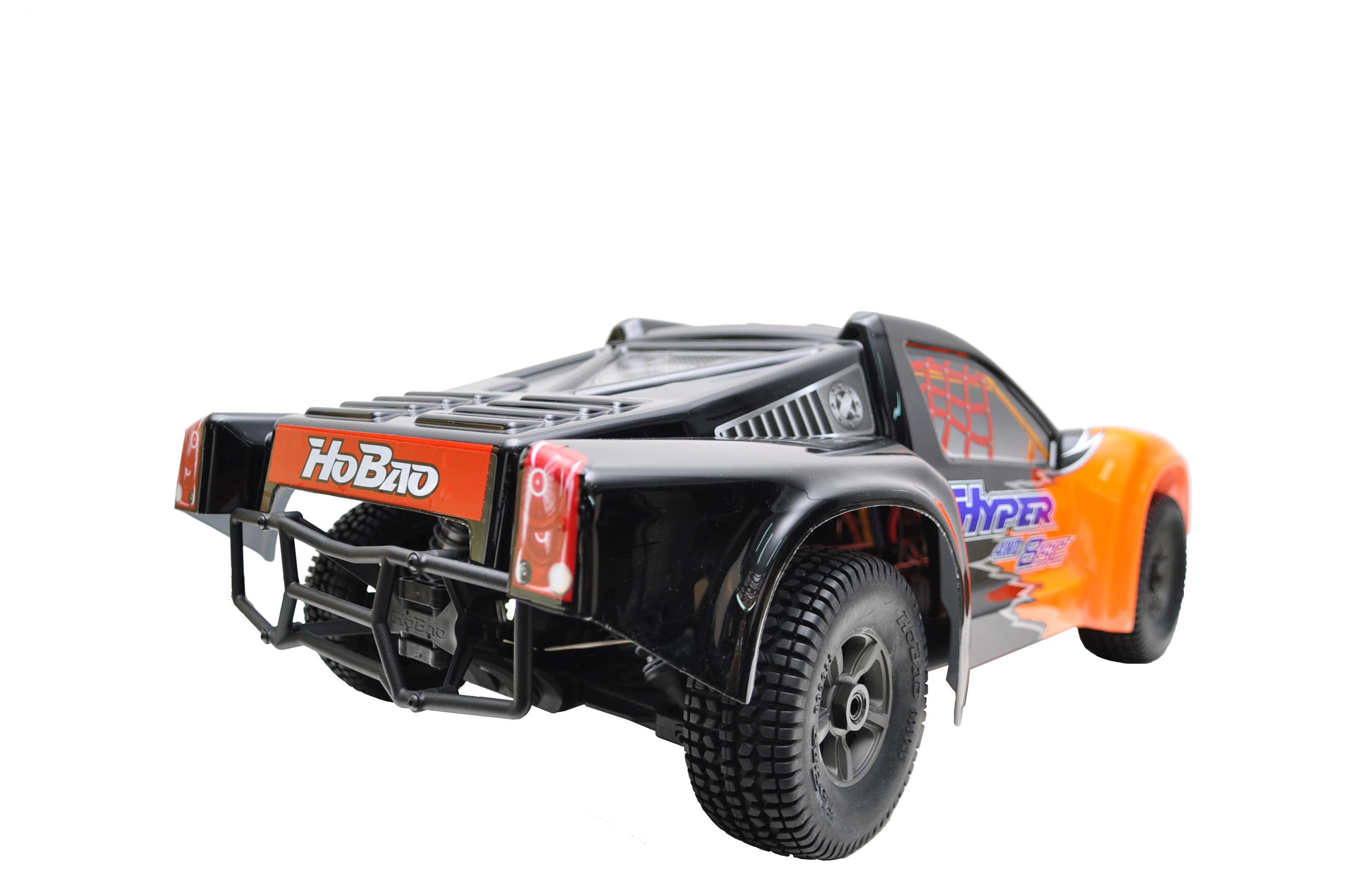

< PHOTO GALLERY >
