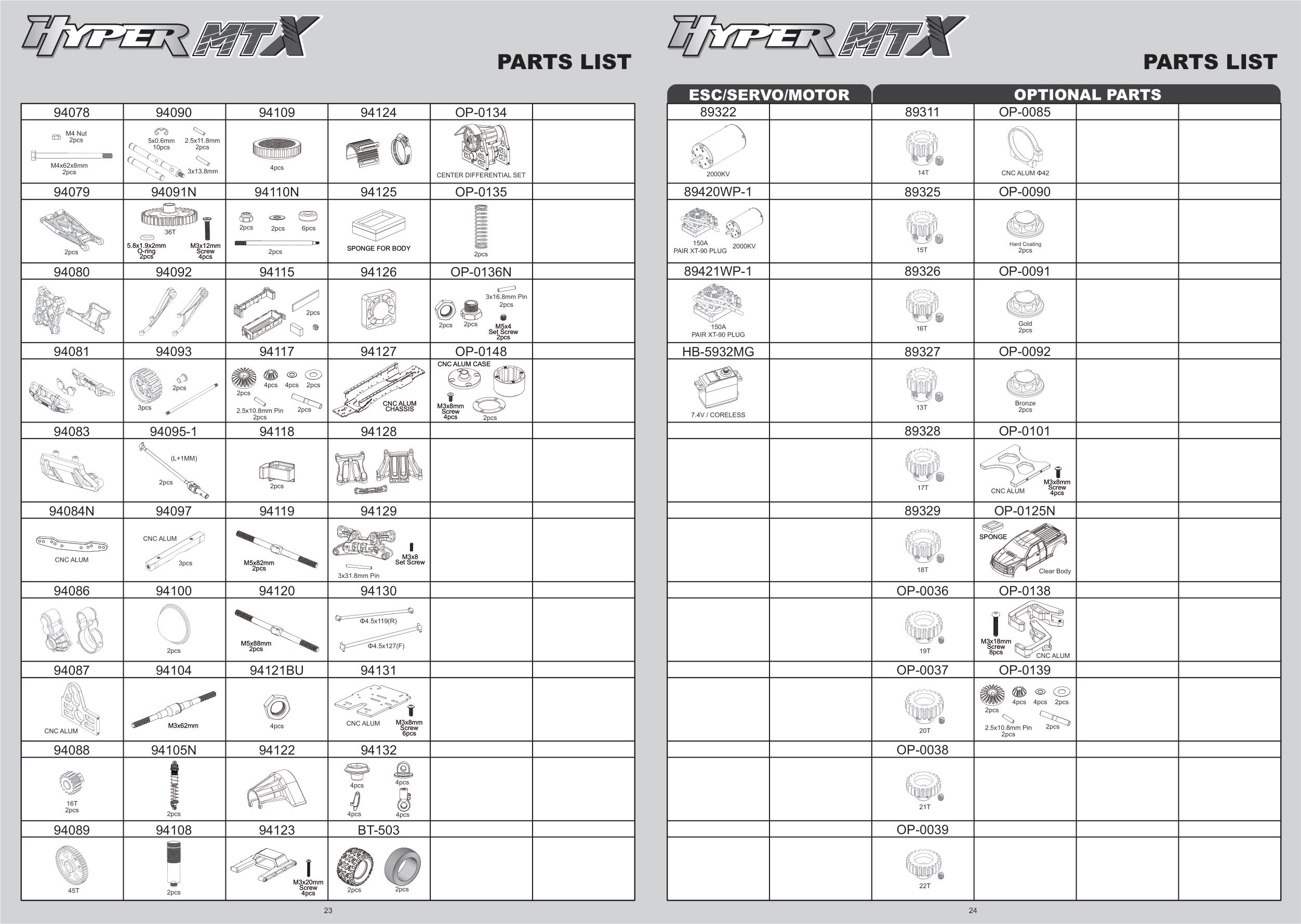

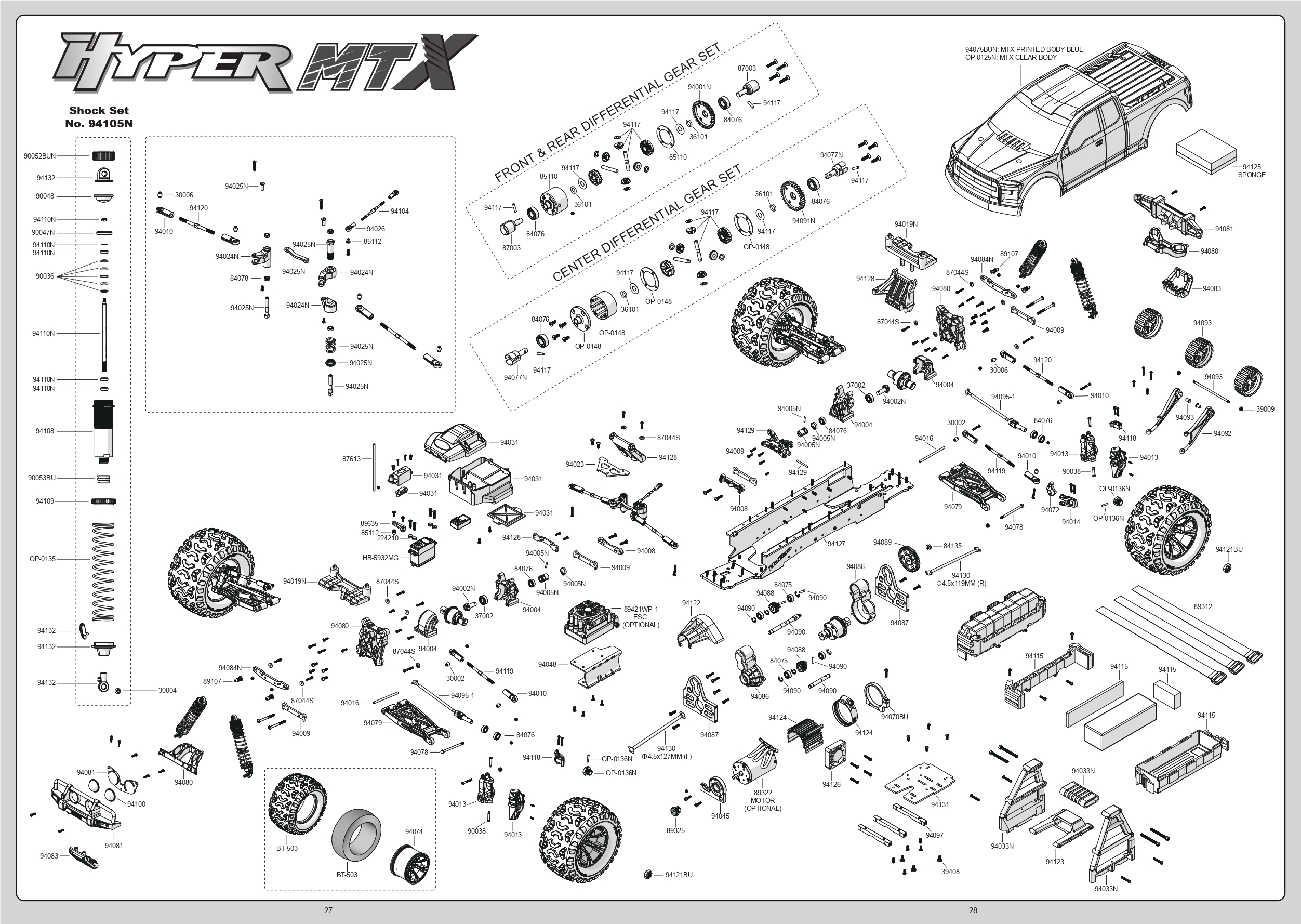

  DOWNLOAD MTX Manual_20220810-.pdf MTX Exploded View.pdf MTX Exploded View_JPG.jpg MTX Part List.pdf MTX Part List.pdf MTX Part List-2.jpg

Hyper MTXE Monster Truck



  • Radio: 3-channel 2.4GHz FHSS with dual rate steering and throttle
  • Hobby Wing 150A ESC/ 4S~6S / Pair XT90 connectors/ Cooling fan/ Program card
  • Motor: Brushless/ 2000KV/ 4 poles/ Outer Diameter 40mm/ Shaft Diameter 5mm
  • Servo: 32Kg-cm, 7.4V High Torque & High speed / Coreless Digital / Waterproof

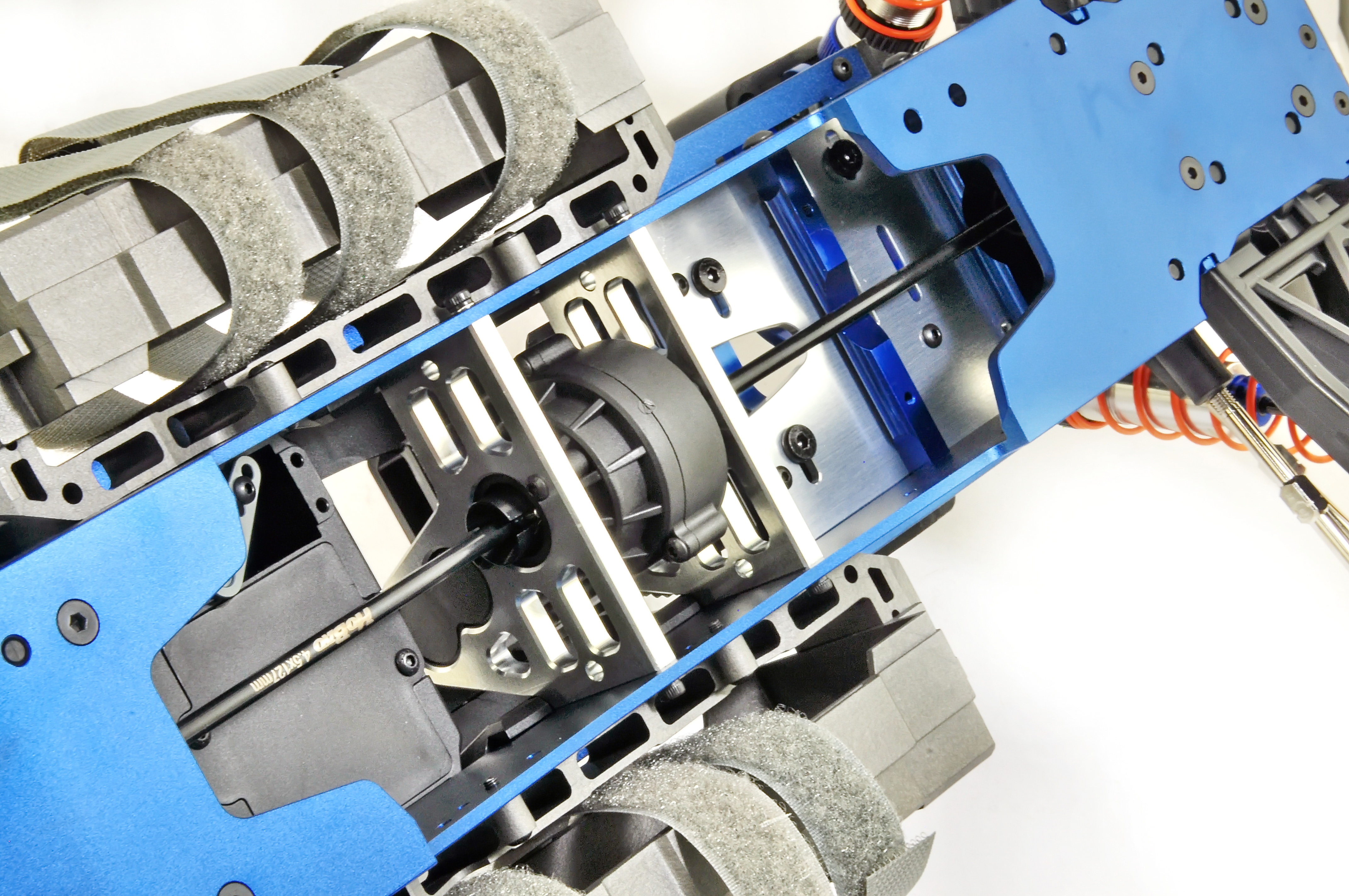

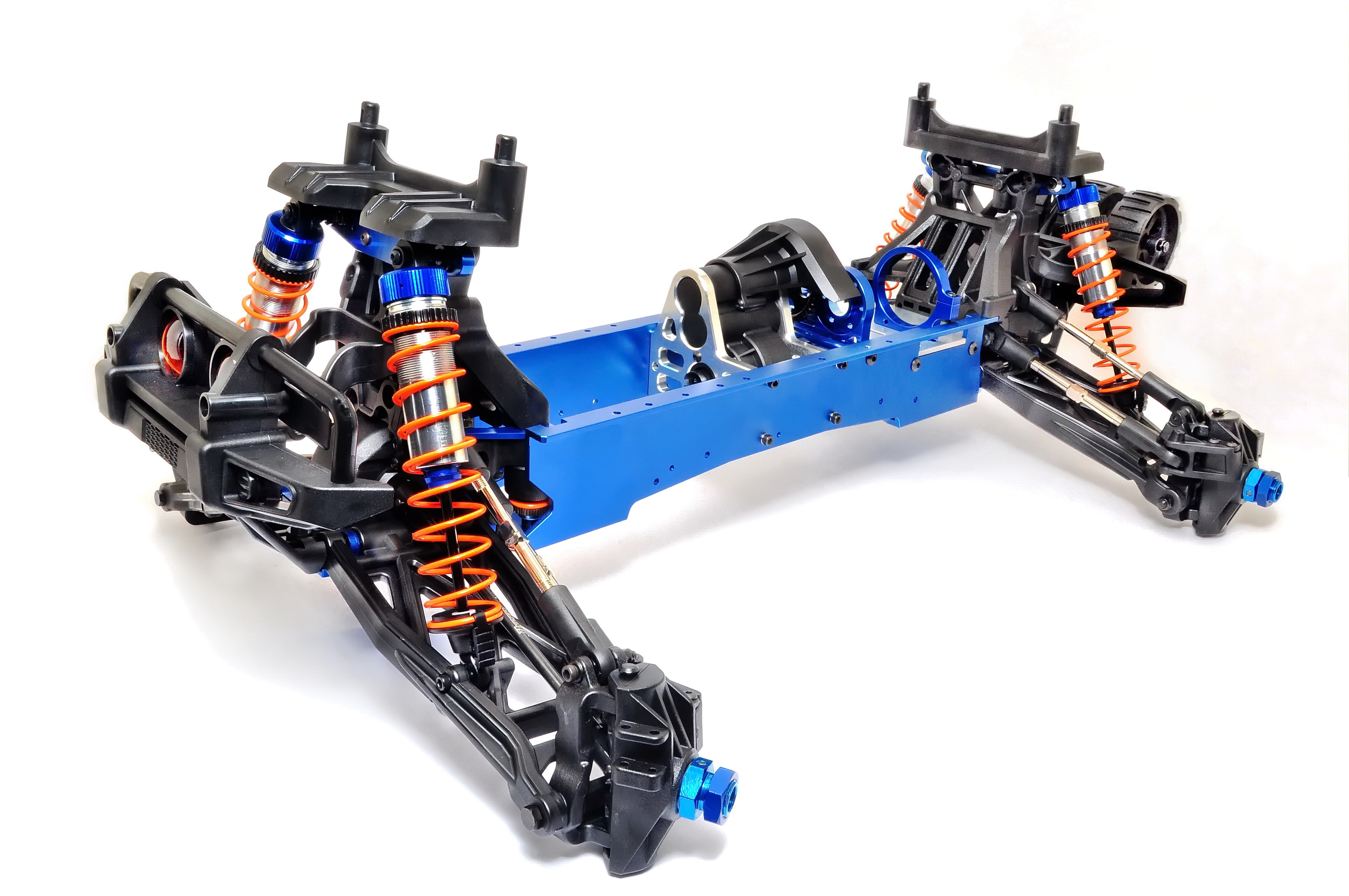

  • Chassis: Havey duty alum 7075 monocoque chassis frame
  • Ball Bearings: Full set included
  • All metal transmission gears
  • Drive: AWD, Heavy duty driveshaft
  • Front & Rear Differentials: Steel bevel gear/ Anti-leakage differential housing/ Hardened steel cups

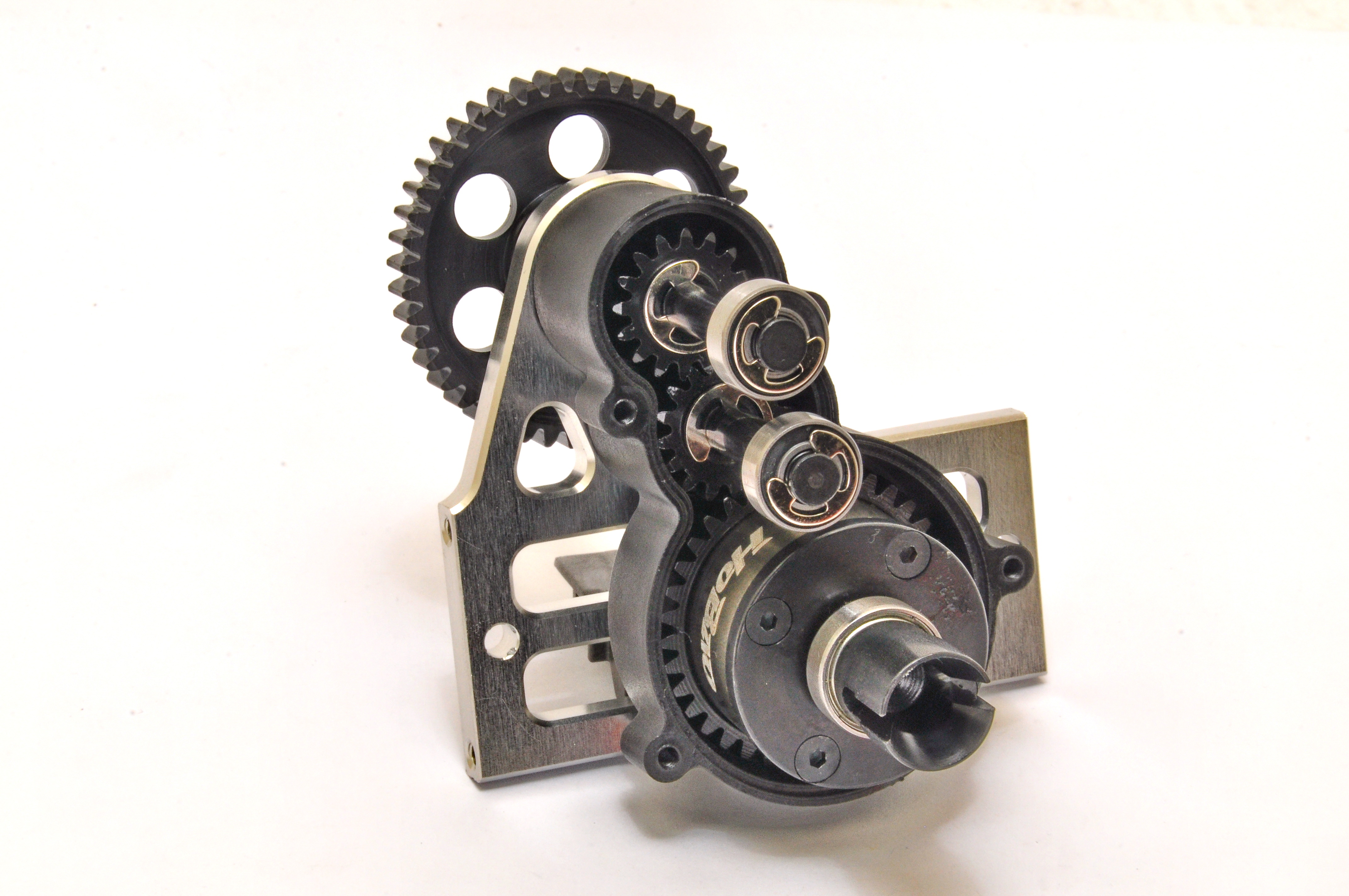

  • Center Differential: Steel bevel gear/ Alum anti-leakage differential housing
  • Pinion and Ring Gear: 9T/ 29T (MOD 1)

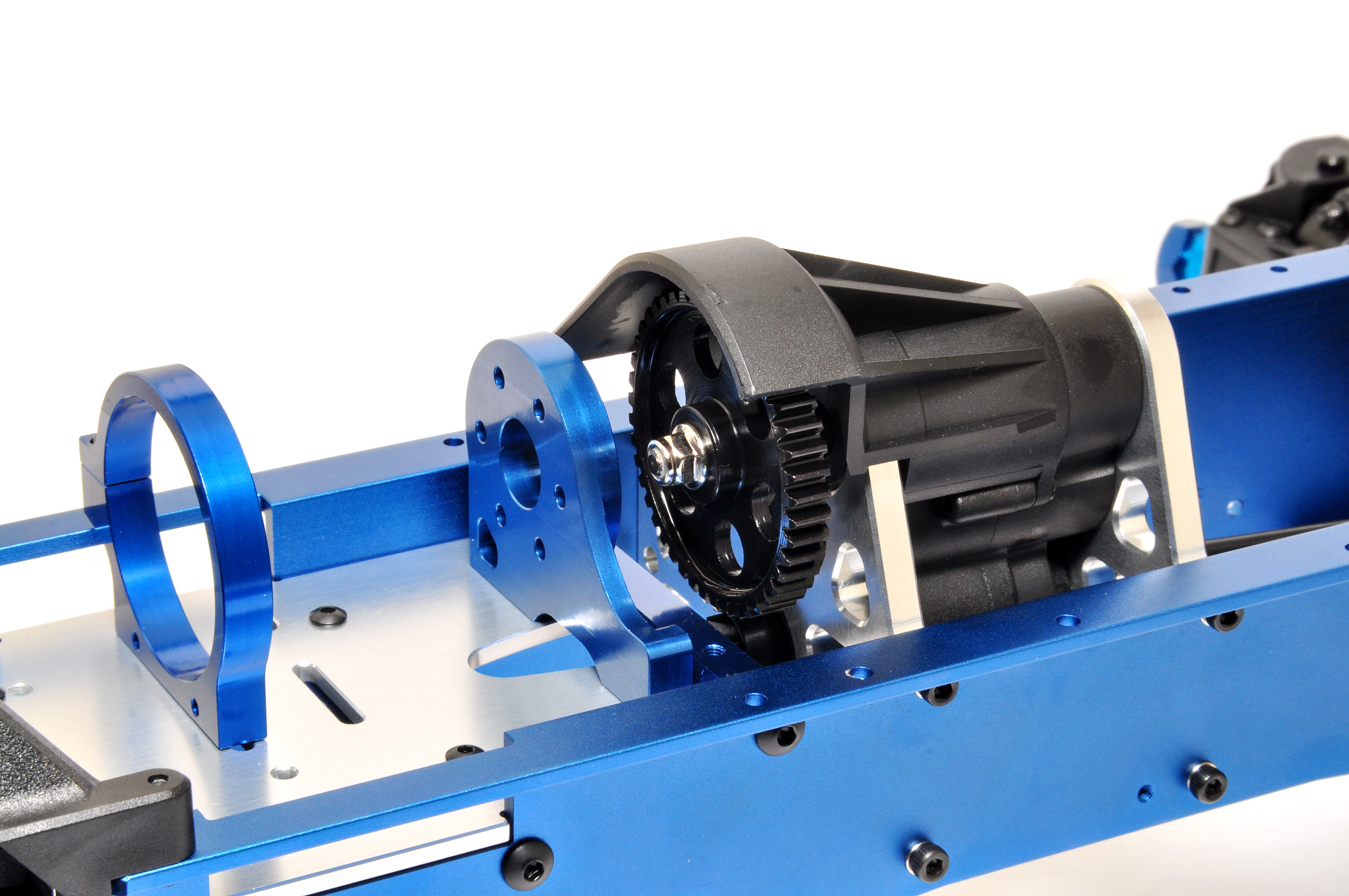

  • Spur Gear: 36T (MOD 1)
  • Motor Gear: 15T (MOD 1)

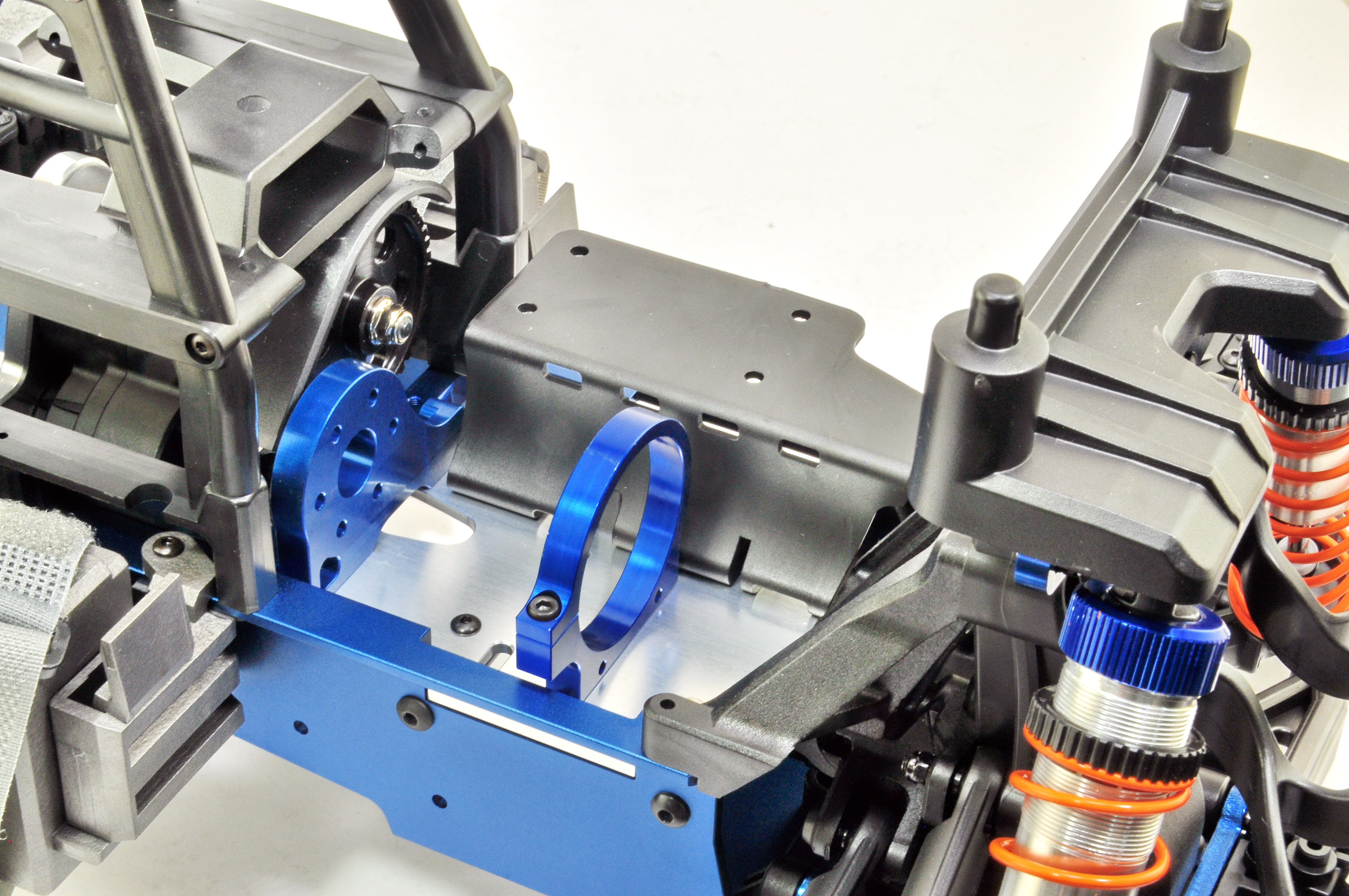

  • Motor Mount: adjustable

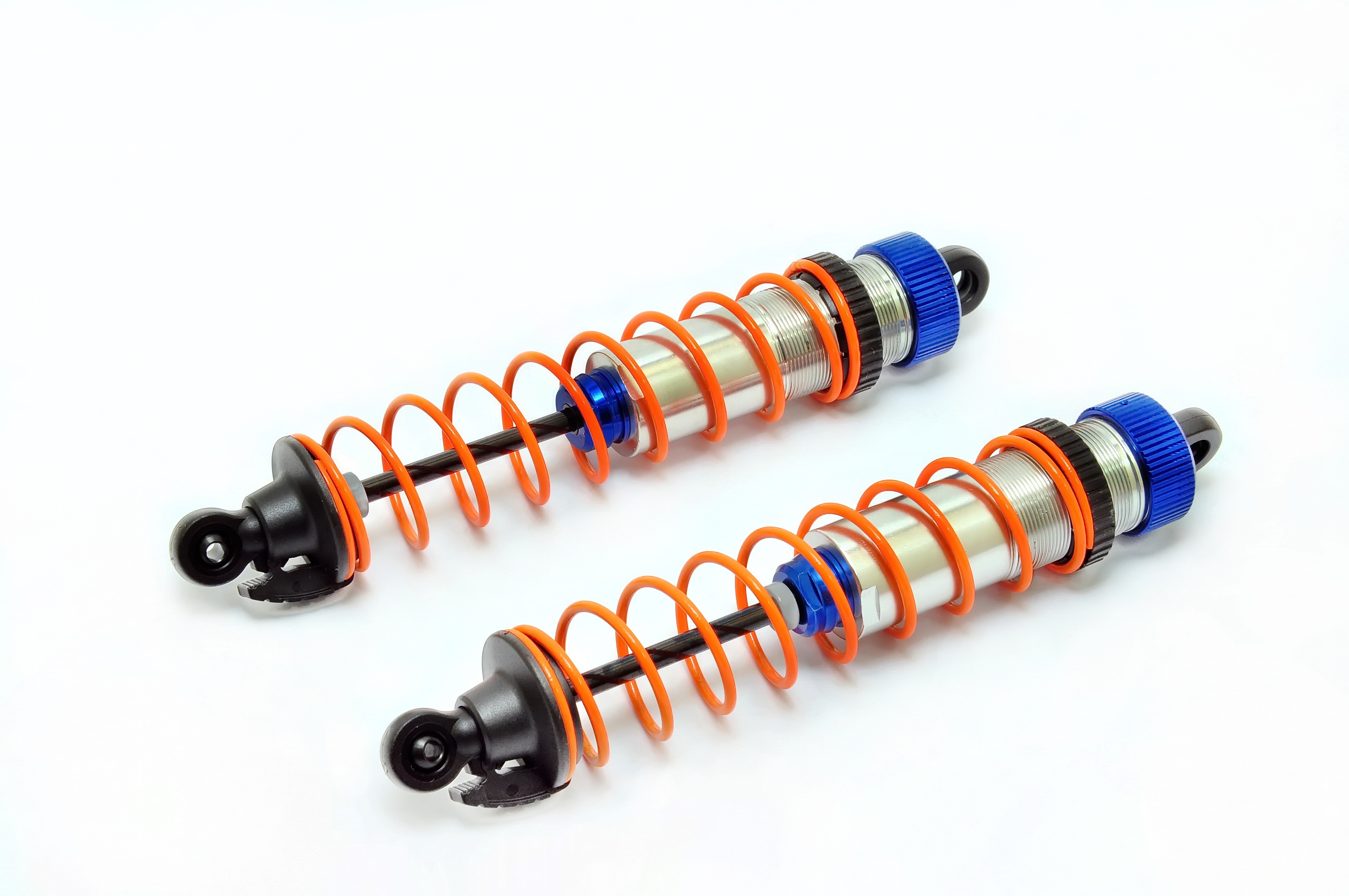

  • New oil-filled 17mm big bore and long stroke, 4mm diameter shafts

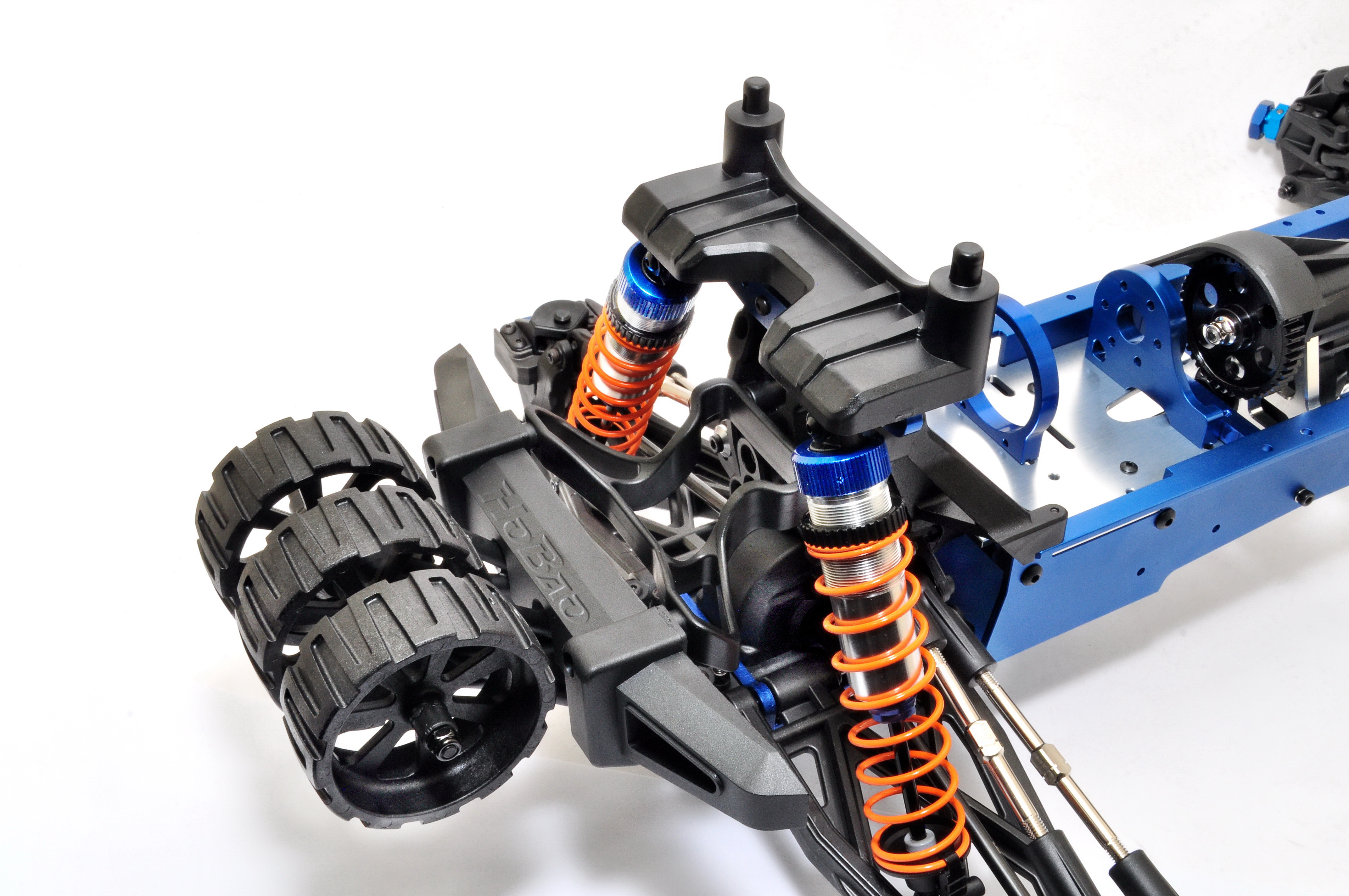

  • Shock: Height adjustable shock spring perches
  • New shock piston with 3 x 1.6mm holes / configure option OP-0135 / new reinforced top end and rod end
  • New shock shaft: special surface treatment improves the shock performance

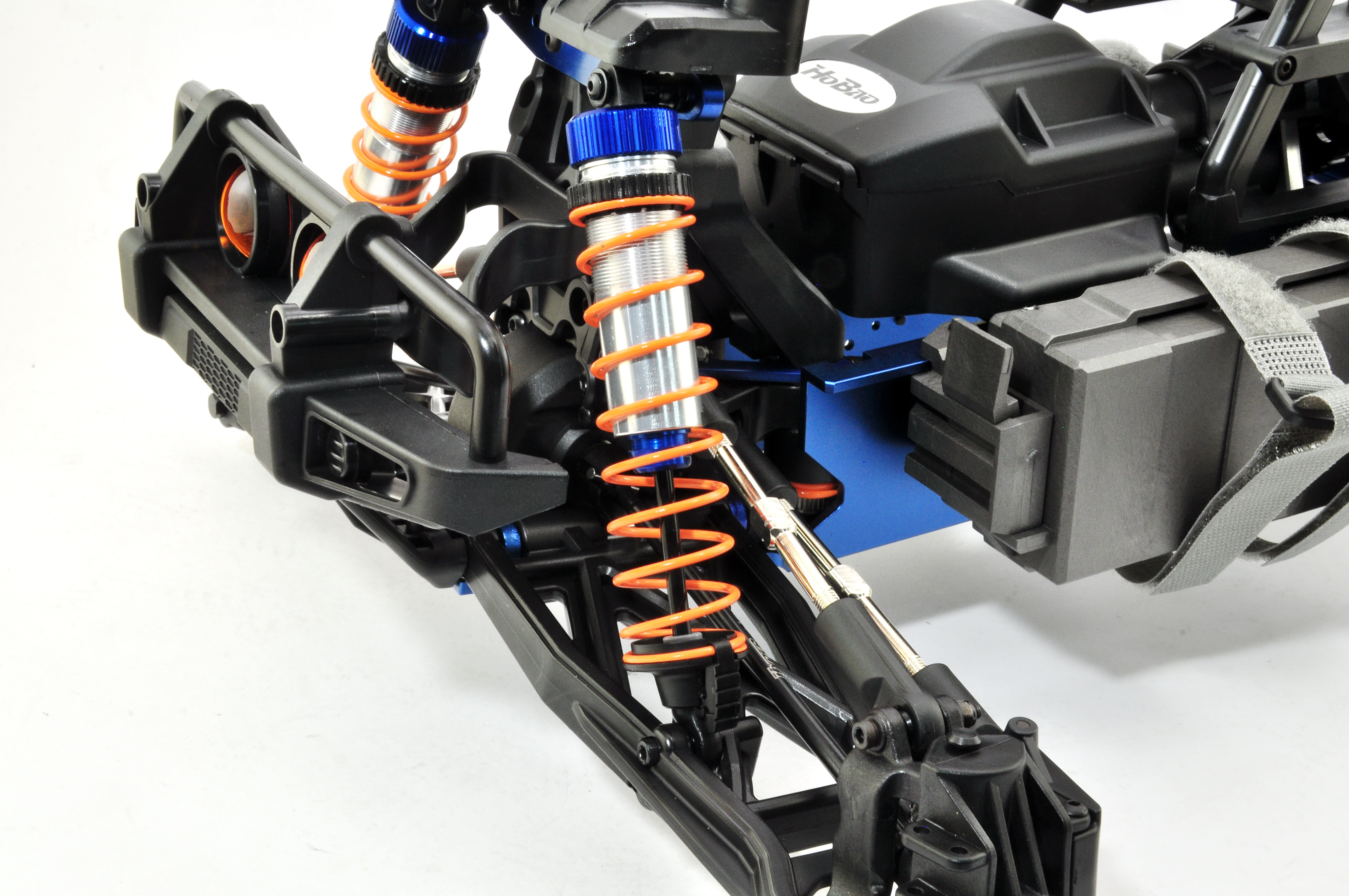

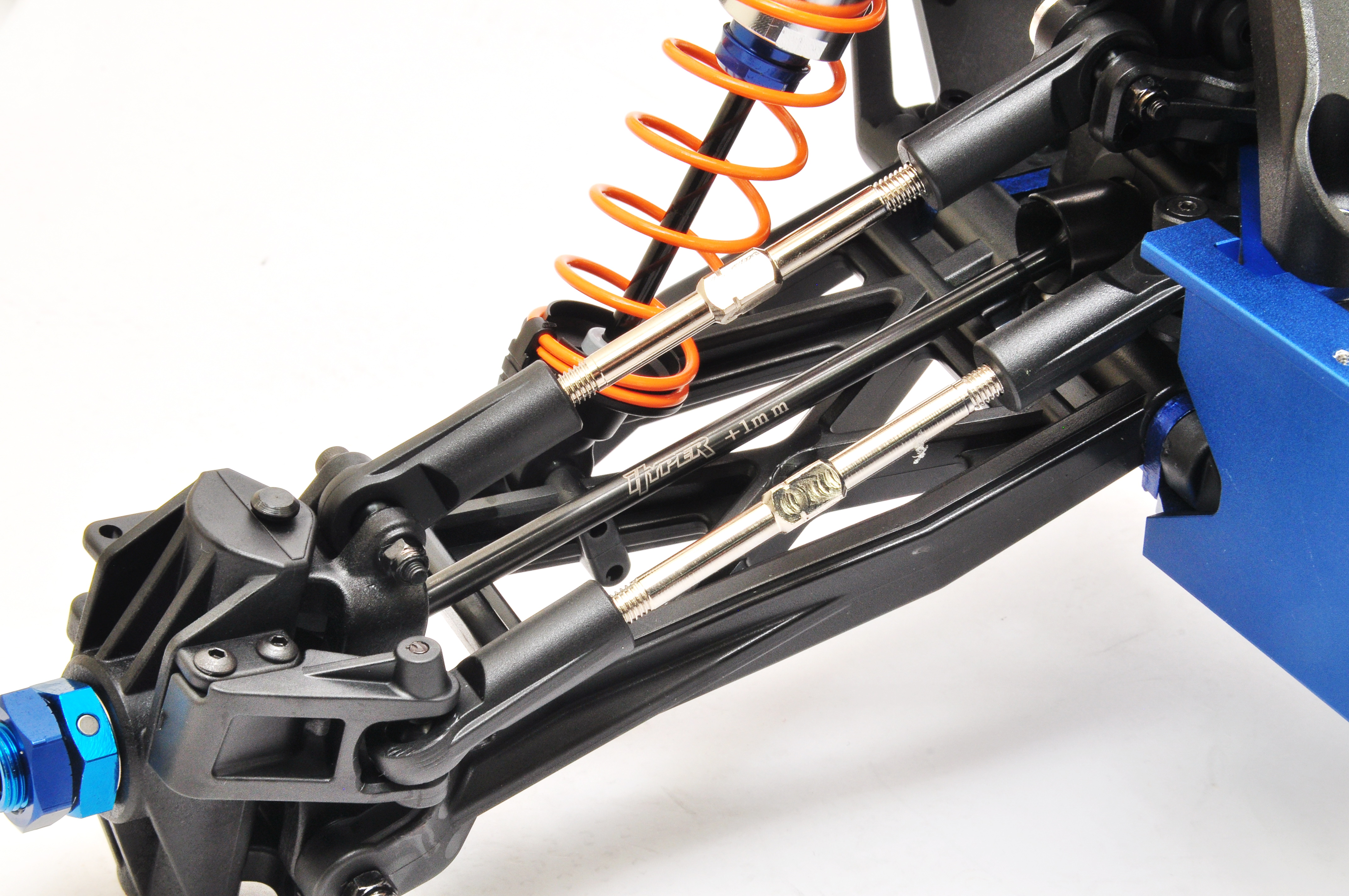

  • Suspension: reinforced composite upper arms and lower arms
  • Front/Rear high torque universal joints with differential outdrive cups
  • New servo saver & Steering rack & Hard spring
  • New shock top cap protector with body post

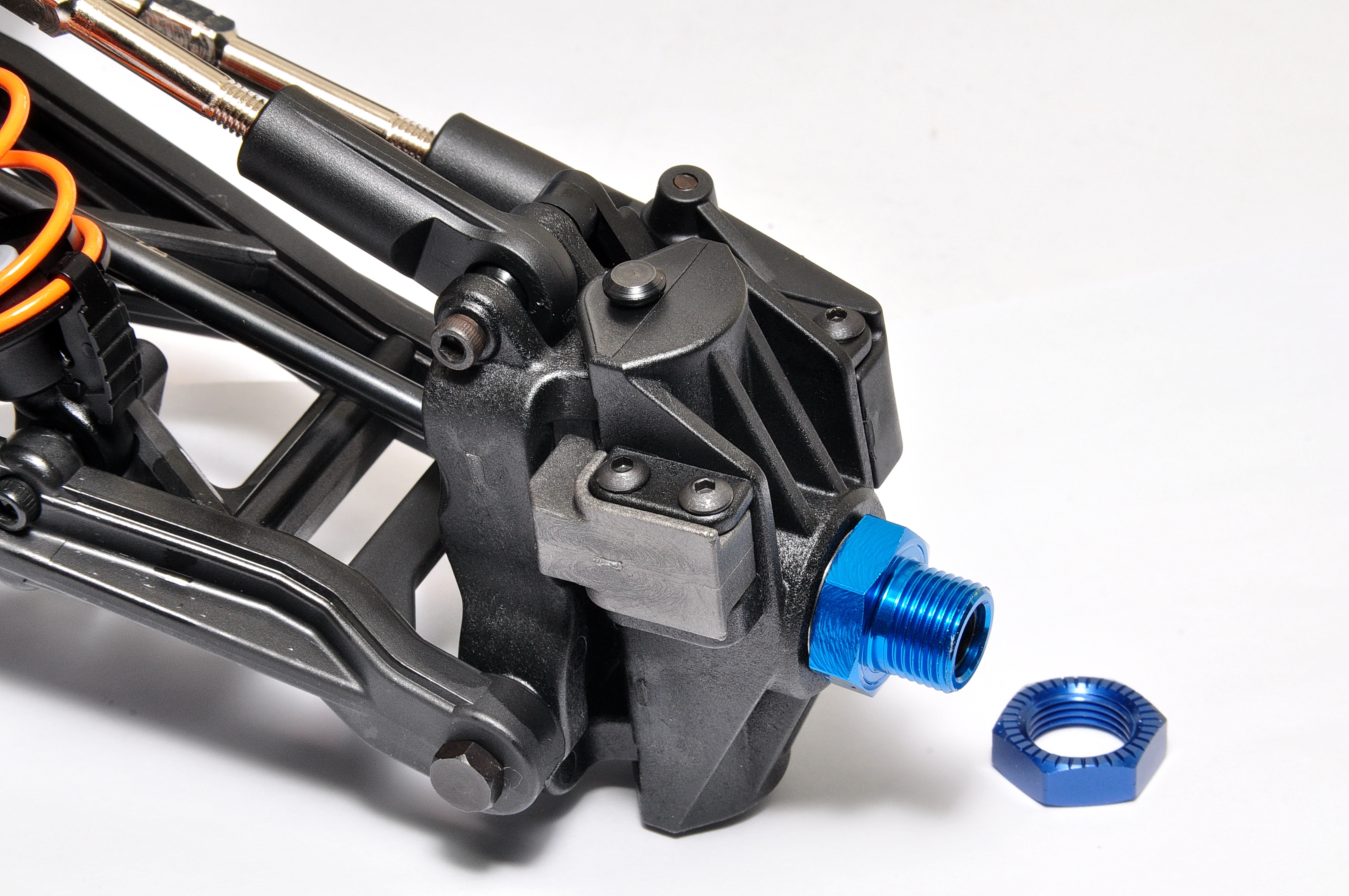

  • Alum wheel hub and nuts: 17mm Hex/ Alum anti-loose wheel Nut
  • Wheel Nut option: OP-0090/ OP-0091/ OP-0092

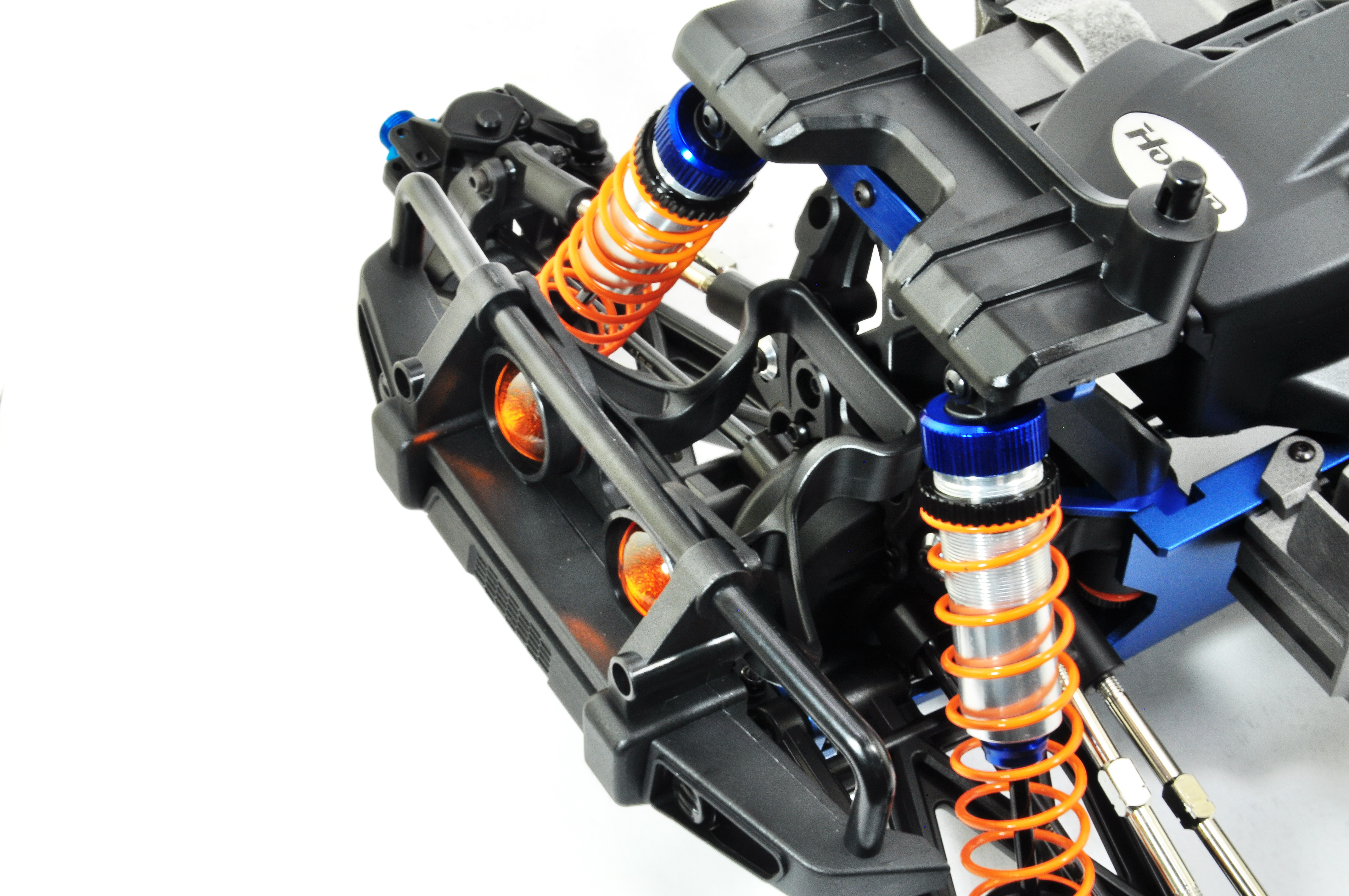

  • New front and rear shock tower brace

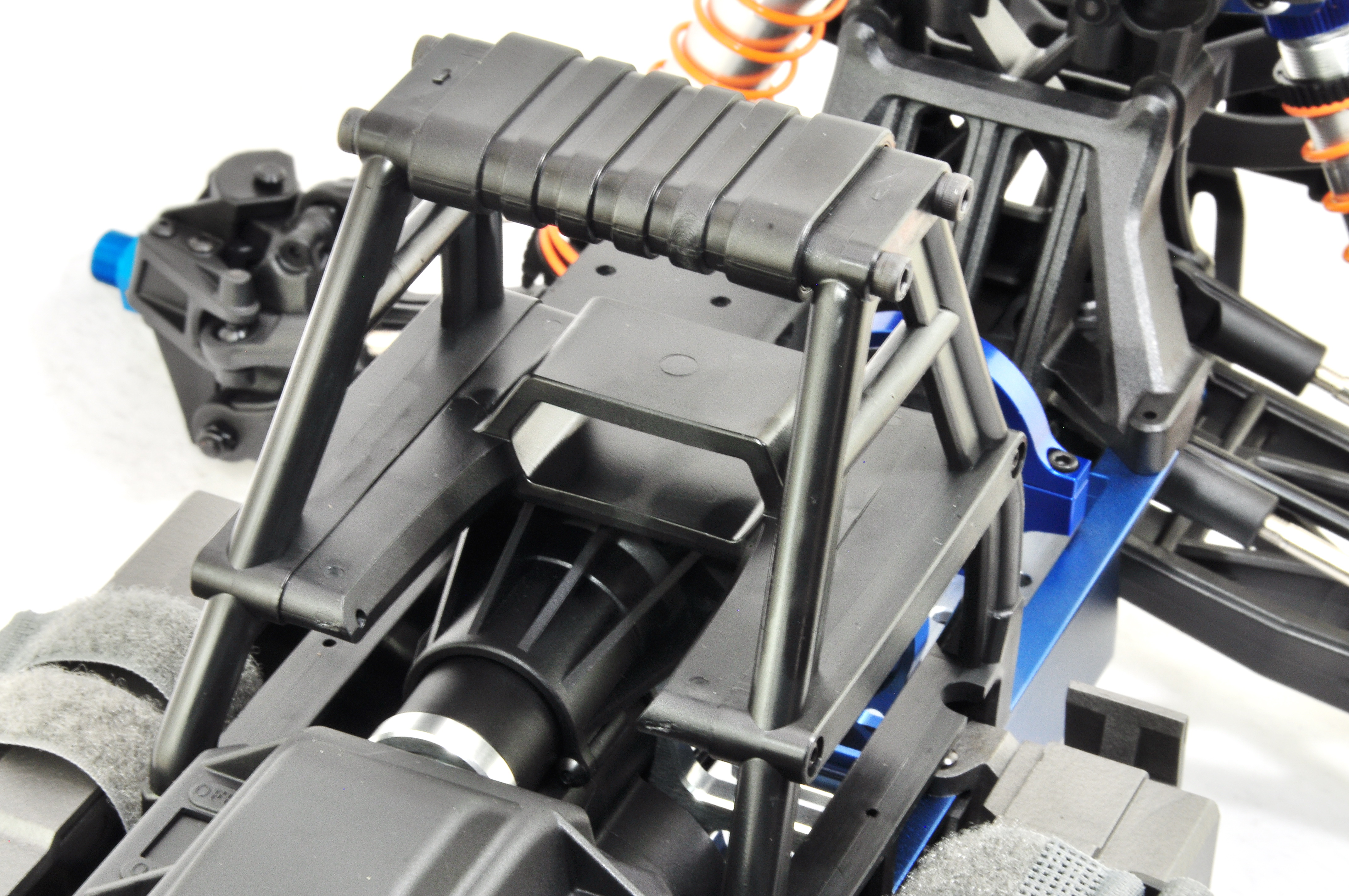

  • New center roll bar/handle
  • New alum shocks stiffener plate
  • Battery Holders: Large capacity box with quick release design

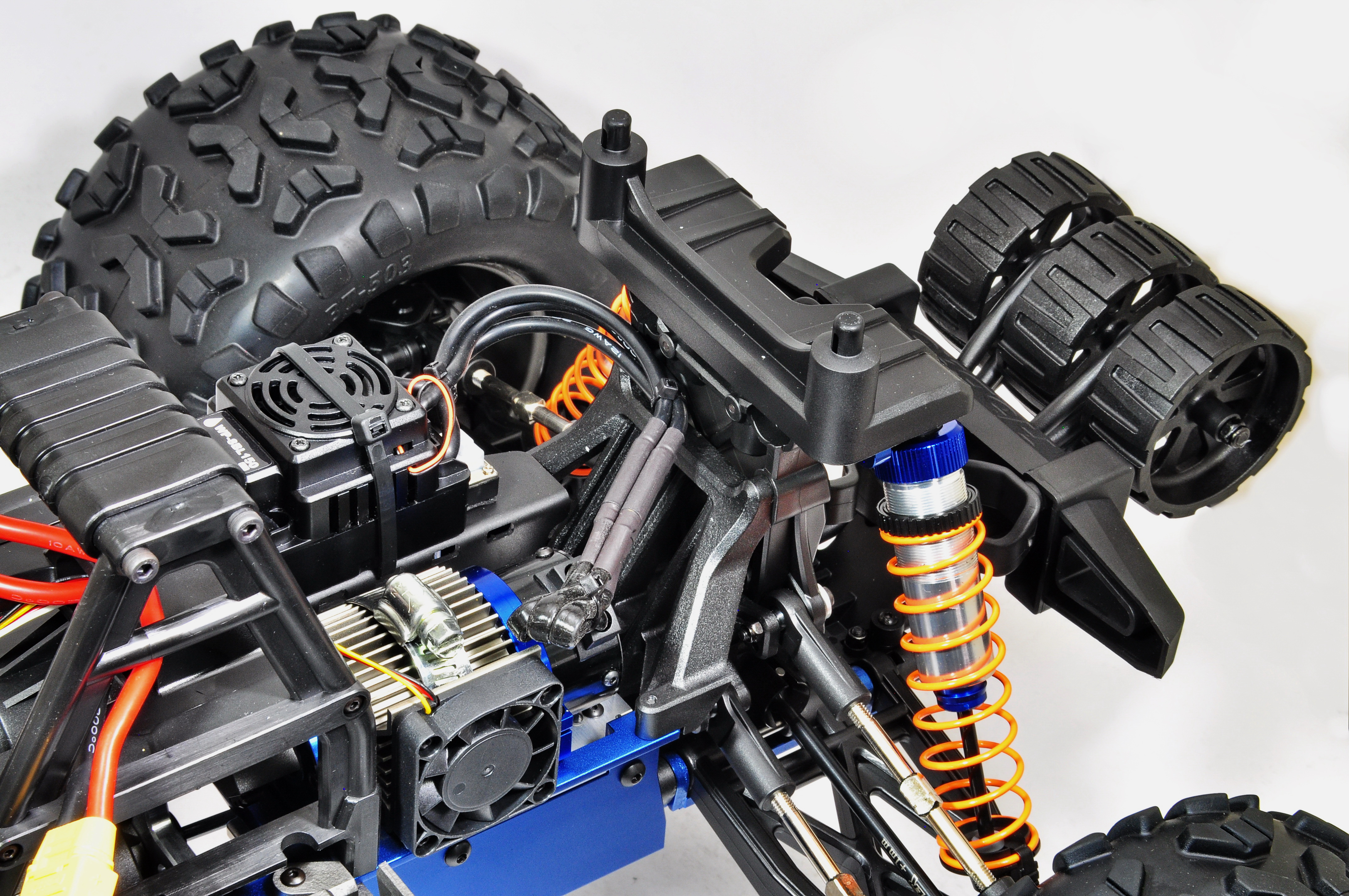

  • Motor Heatsink with Fan
  • Body: 1/8 scale painted
  • Tyres:  182mm Monster Truck Tyres
  • 6 spoke monster wheels, Grey, 17mm Hex
