Hyper Mini ST
  DOWNLOAD Hyper Mini ST Instruction Manual.pdf Hyper Mini ST Exploded View.pdf Hyper Mini ST-e Instruction Manual.pdf Hyper Mini ST-e Exploded View.pdf

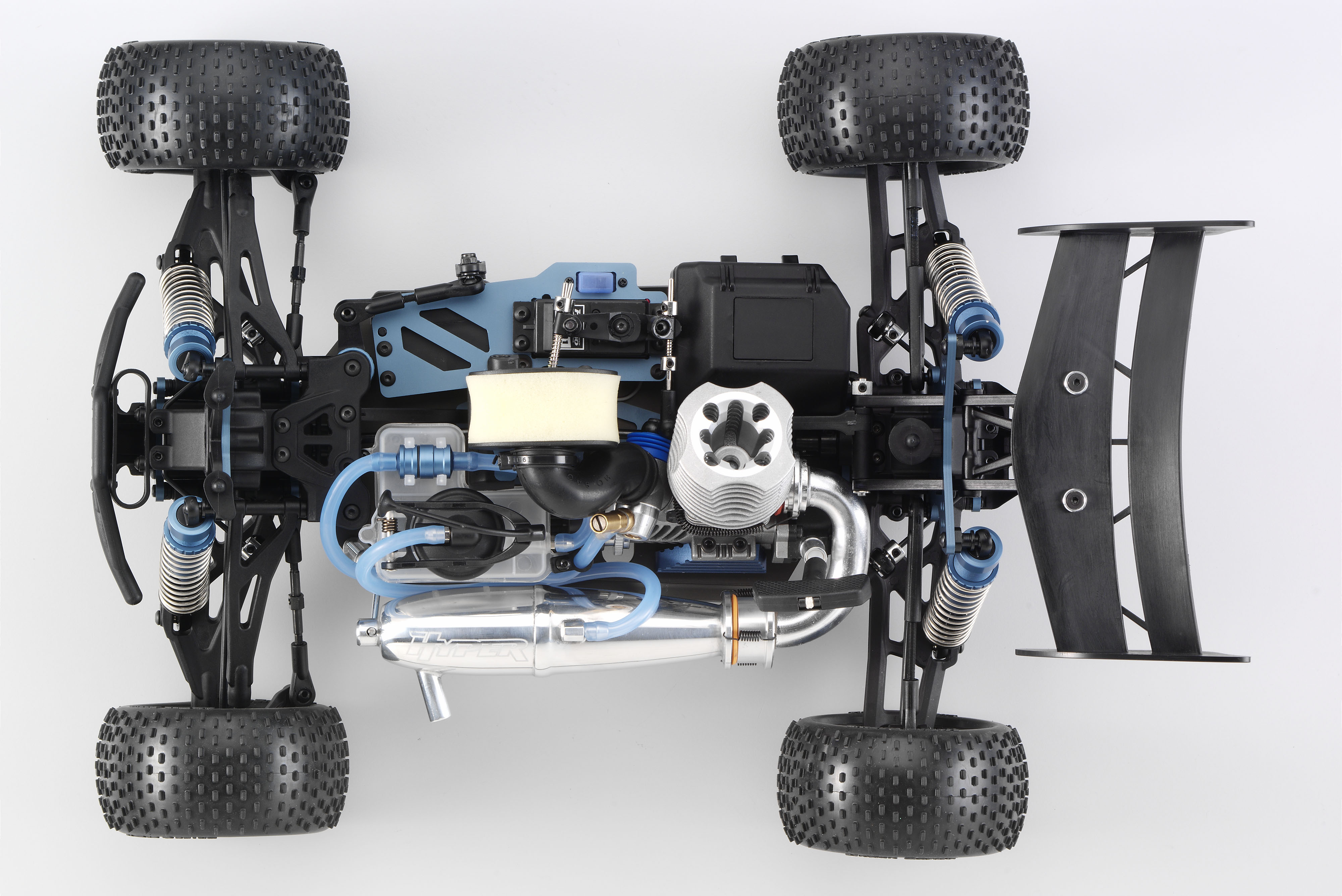

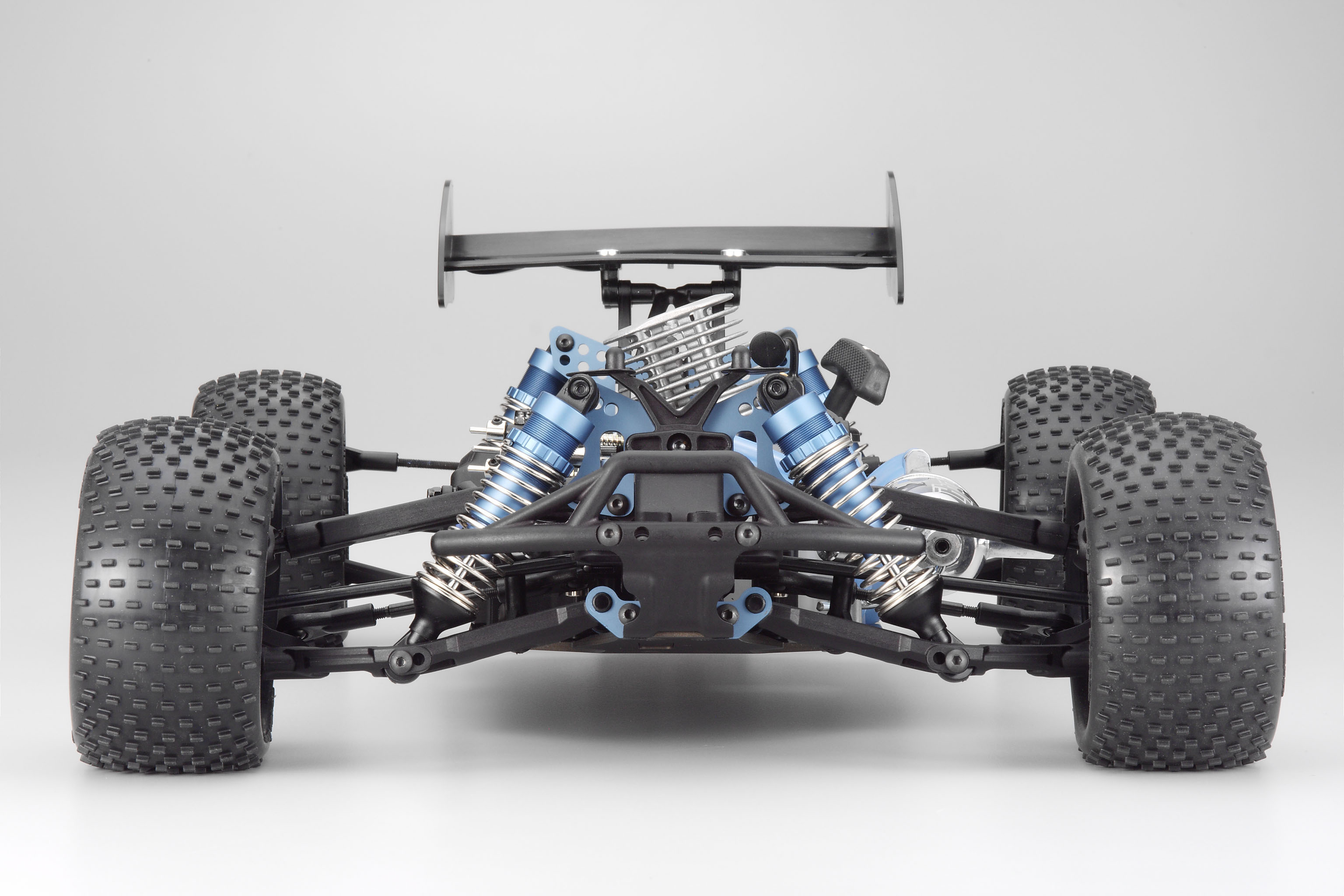

The Hyper 12 Mini ST features everything you expect in a Truggy. Supplied as a Ready-To-Run package with Hobao 2.4GHz radio installed, it comes factory assembled to a very high specification. It's compact design means that everything is made to measure to ensure the truck fits within the 1/12th scale dimensions. In addition, the CAD design tilted engine provides exceptional side to side balance for an even handling chassis.






< FEATURES >

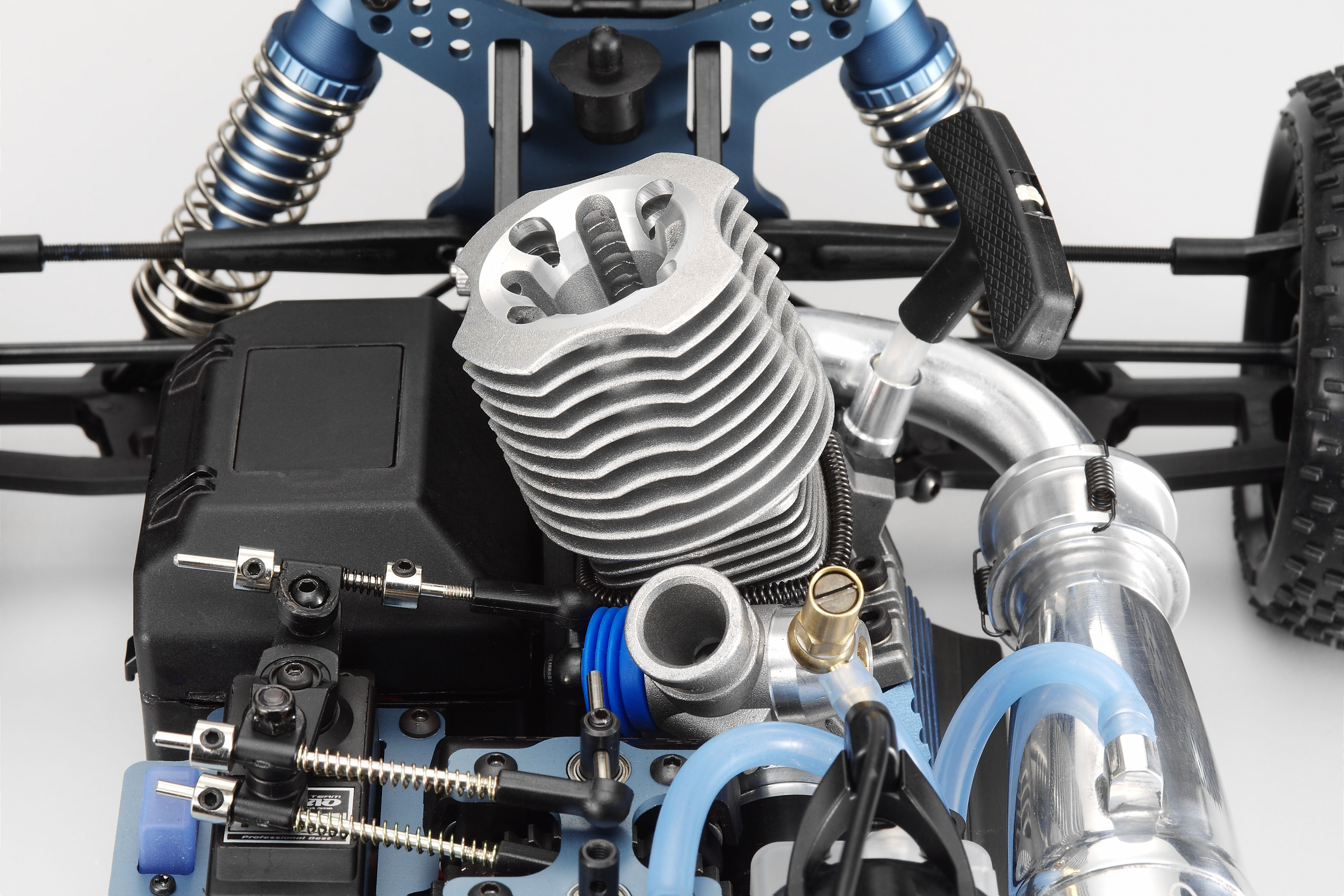

Tilted Engine



The Mini ST Truggy features a Hyper 12 Pull Start Tilted Engine for improved weight balance left to right.

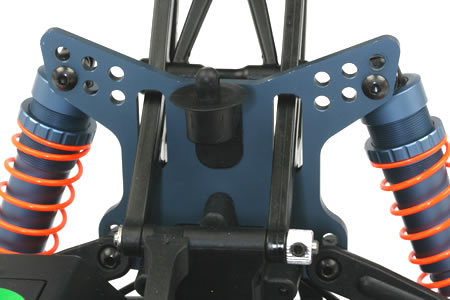

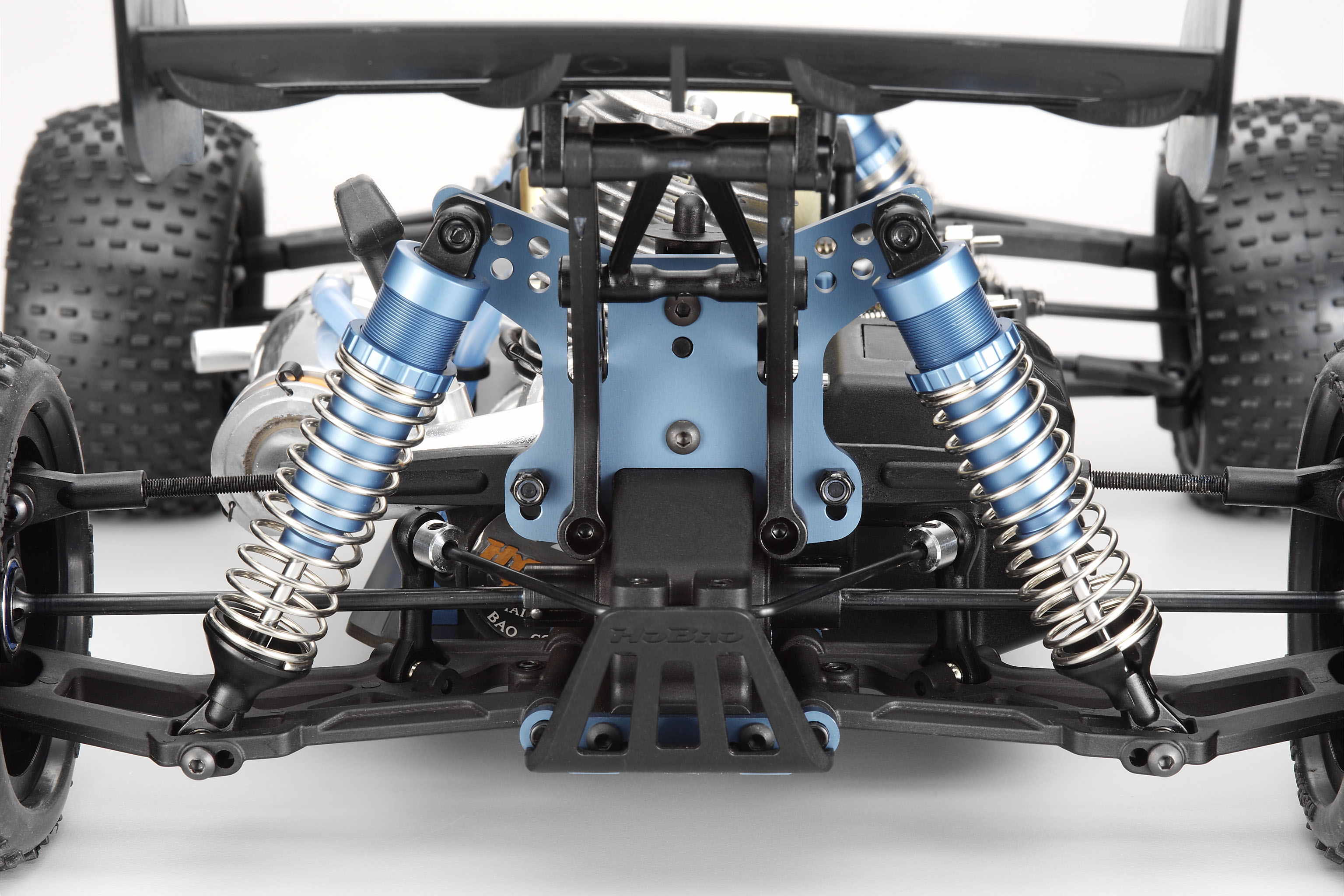

Easy Tune Suspension



Pivot ball front suspension for easy tuning with adjustable anti-roll bar and threaded adjustable shocks.

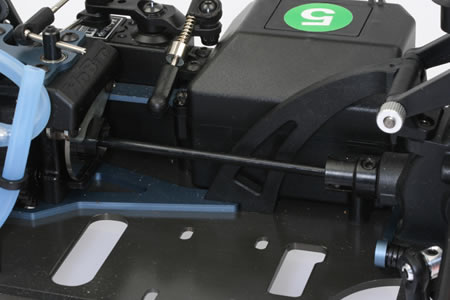

Transmission



Shaft drive transmission with front and rear chassis braces.

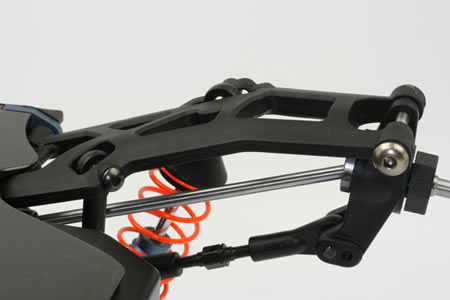

Angled Wishbones



Long Throw angled wishbones for maximum track and road holding even under extreme suspension travel.

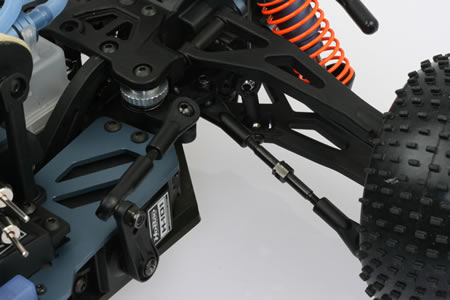

Adjustable turnbuckle



Turn buckle is standard for easy adjustment on steering and rear camber link.



Factory pre-assembled

3-shoe clutch

Polished in-line connected pipe set

Front and rear anti-roll bars

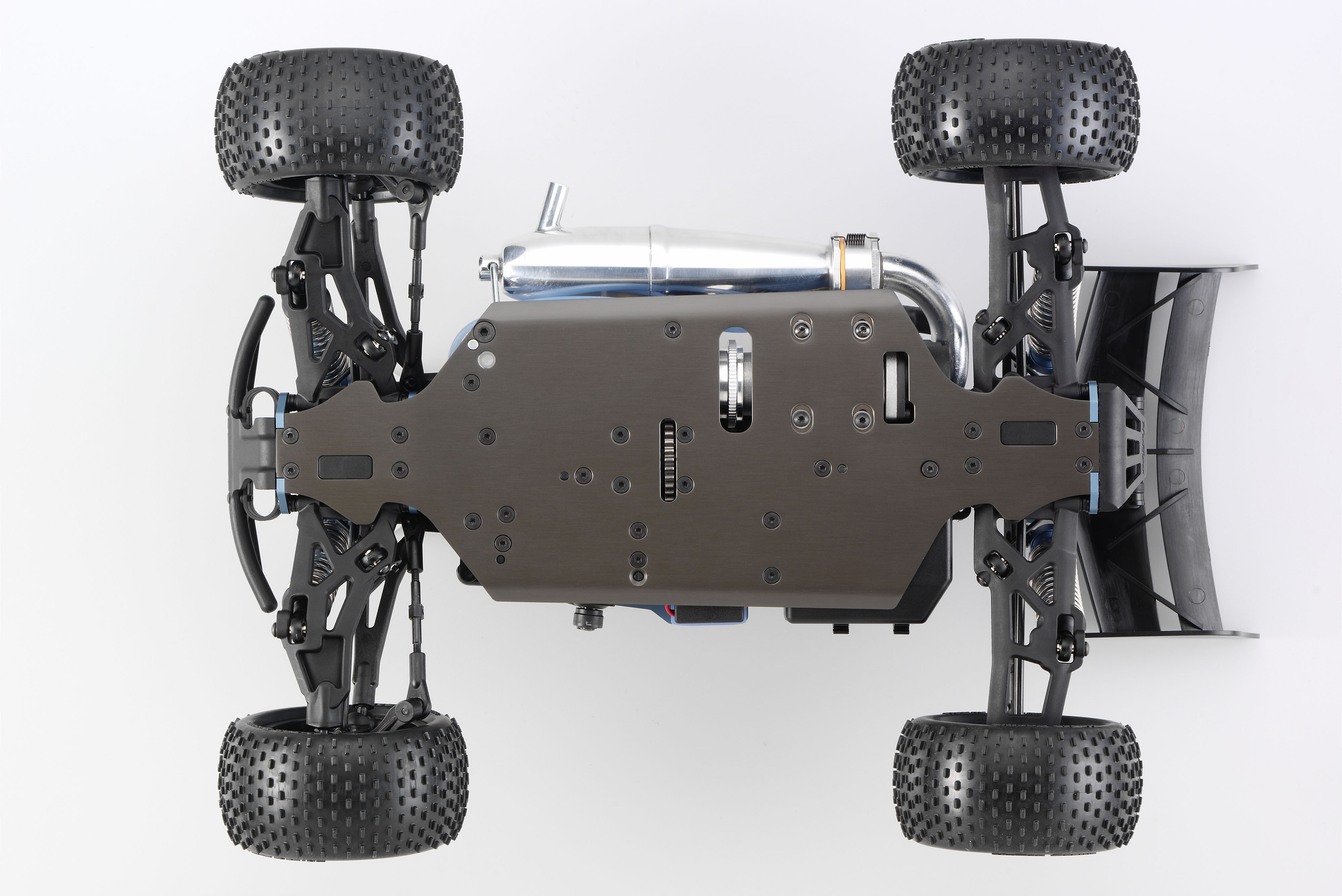

Hard anodized chassis

Threaded aluminum shocks

Front CVA drive shafts

2.2" size wheels and tires






< EQUIPMENT NEEDED >



Glow plug

Glow ignitor

Nitro fuel

Batteries for radio system






< SPECIFICATION >


LENGTH 370MM
WIDTH 290MM
HEIGHT 160MM
WHEELBASE 240MM
TRACK(F/R) 290MM / 305MM
WEIGHT 1,900G
