Hyper Star
  DOWNLOAD Hyper Star Instruction Manual.pdf Hyper Star Exploded View.pdf Hyper Star Blank Setup Sheet.pdf



After a long waiting, Hobao's newest weapon, the Hyper Star, has finally been released after months of testing and tweaking. Featuring all new front pivot ball suspension, stiffer chassis, new front/rear shock towers and new brake system. Hyper Star has been designed and manufacured to the finest detail and craftmanship that you wouldn't want to miss. Now, Star is ready to take the challenges in the incoming years of exciting 1/8 nitro buggy racing. So, are you ready?






< FEATURES >

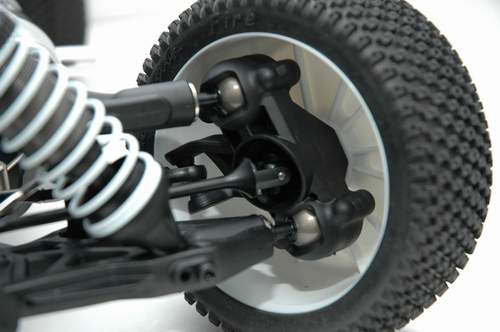

New Pivot Ball Suspension



The PBS is utilized to provide a smoother and more consistant steering over different track conditions. The pivot ball is made from aluminum with stainless steel thread end to withstand high impact turning and landing.

New Battery/Receiver Box



The new box is now bigger with a hinged lid for easy access. Transpondor can be mounted easily from under the lid.

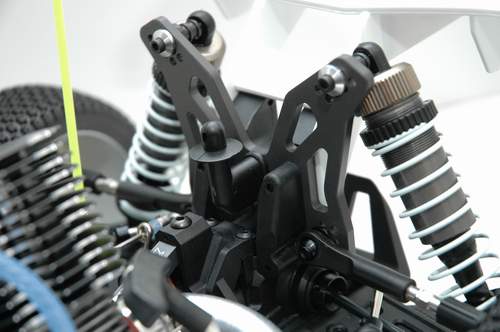

Multi-Hole Front and Rear Shock Towers



The shock towers have more mounting holes for more suspension adjustment options. The shock towers are hardened to withstand high impact force during jumping and landing.

Cross Linkage Arm for Throttle and Brake



The new cross linkage works much more efficient and performs better without any binding. The middle and rear brakes are now on individual link for easy adjustment and precision control.

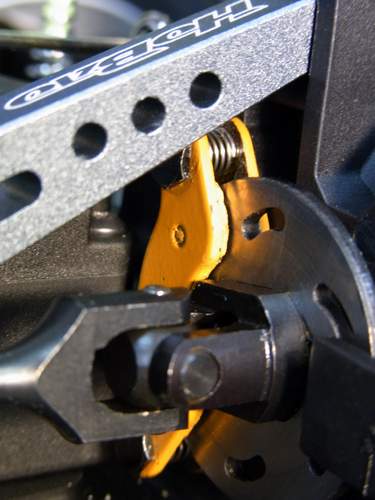

Ceramic Brake Pads



Stopping power is very crucial in winning a race. Hobao's newly developed ceramic brake pads utilize the brake pad compound that is used on motorcycles and redesign it to fit on RC. The ceramic brake pades provide powerful, long lasting braking force so you will not feel any brake fades during long races.

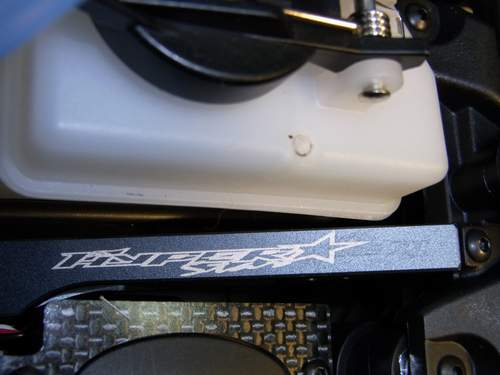

Laser Etched Logo



Both front and rear chassis stiffeners are CNC machined and laser etched to signify the Hyper Star model.



Front and center spider differential

Front and rear universal driver shaft

Center universals

4mm light weight 7075 chassis

Hyper Star laser eteched logo on chassis

New front and rear anti-roll bars

New stronger servo saver for durability

Redesigned center differential and brake cover

New front composite chassis plate

New center chassis differential plate






< EQUIPMENT NEEDED >



Engine

Manifold and Tune Pipe

Glow plug

Glow ignitor

Nitro fuel

Transmitter/Receiver/Servos

Batteries for radio system






< SPECIFICATION >


LENGTH 495MM
WIDTH 305MM
HEIGHT 190MM
WHEELBASE 322MM
TRACK(F/R) 305MM / 308MM
WEIGHT 3,300G
