TOURING CAR

Hyper GPX4-Pro 1/10th scale Onroad Pro Kit
  DOWNLOAD GPX4-PRO Instruction Manual.pdf GPX4-PRO Exploded View.pdf GPX4-PRO Blank Setup Sheet.pdf



Acknowledged as the best specification RTR Nitro Tourer on the market, the GPX4 has gone down a storm with first timers, intermediate and club racers. Now available is a Pro version to satisfy the expert racers out there looking for the fastest and finest nitro touring car available.

The Pro steps into the big league with some impressive features as standard. The chassis design, with the battery pack and fuel tank has been optimised for the lowest center of gravity possible, added with center line weight distribution. The fully adjustable suspension features adjustable caster, camber, droop, travel and roll bars. The front blade roll bar features special fine tuning adjustment via a cam for left/right settings. High quality 7075 aluminium and carbon fibre is used throughout and a multi adjustable centax clutch and shoe 2-speed provide drive.

Why pay more when you can pay less and win?






< FEATURES >

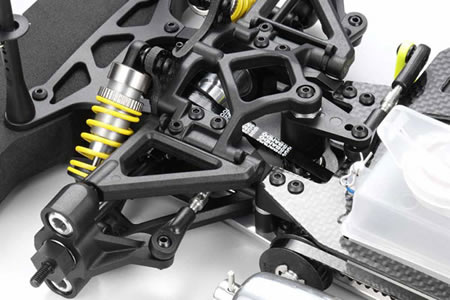

Rear Suspension



Pivot ball rear suspension provides easy adjustment, along with aluminium threaded shock absorbers.

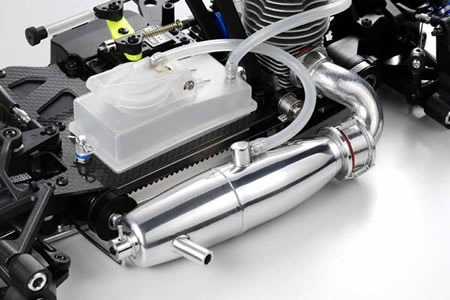

Pipe Set



A superior quality in-line polished pipe set comes standard with the Pro.

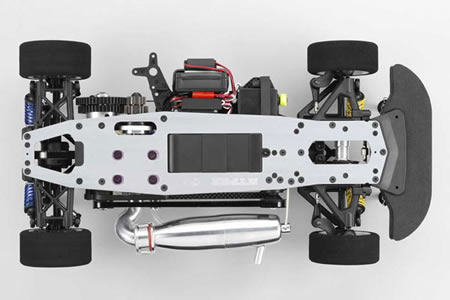

Chassis Design



Center line weight distribution of battery pack and fuel tank provide superb ontrack stability.

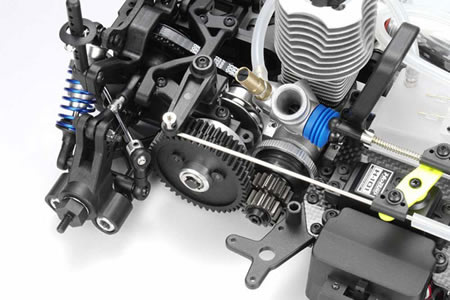

Transmission



GPX4 Pro uses a multi adjustable centax style clutch as featured on the leading nitro race cars and provides ultimate drive and adjustment for almost any situation, track, engine etc. In addition a shoe style 2-speed provides better engagement over stock 2-speeds.



Centax Adjustable Clutch System

Shoe 2-Speed Gearbox

Blade Front Anti-Roll Bar

Rear Anti-Roll Bar

Carbon Fibre RadioTray

Front One-Way Differential

Geared Rear Diff

Front and Rear Carbon Fibre Shock Towers

Low Gravity Fuel Tank and Battery Holder

Front and Rear CVD Driveshafts

Turnbuckles

Mounted Foam Tyres and Wheels

Tuned Pipe and Manifold

Threaded Aluminium Shocks






< EQUIPMENT NEEDED >



Engine

Glow plug

Glow ignitor

Nitro fuel

Transmitter/Receiver/Servos

Batteries for radio systems






< SPECIFICATION >


LENGTH 375MM
WIDTH 200MM
HEIGHT 115MM
WHEELBASE 265MM
WEIGHT 1,700G

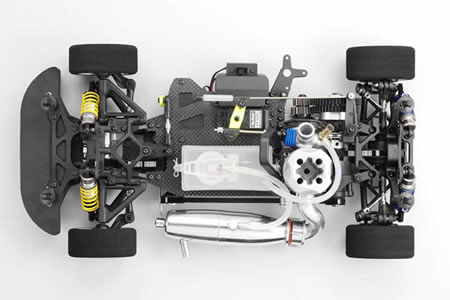

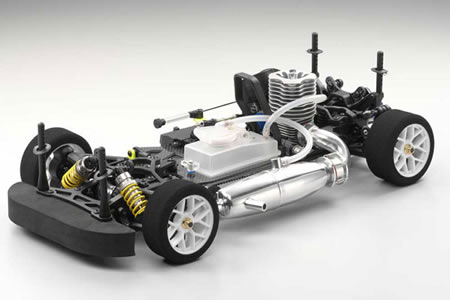

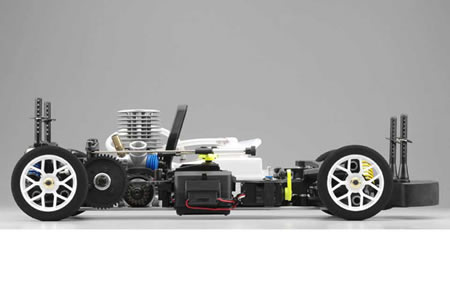

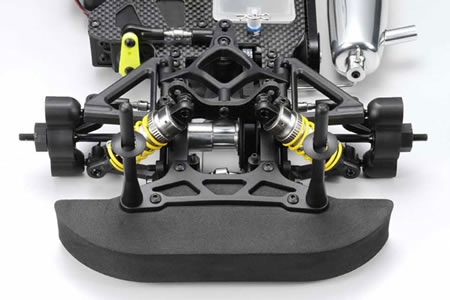

< PHOTO GALLERY >
